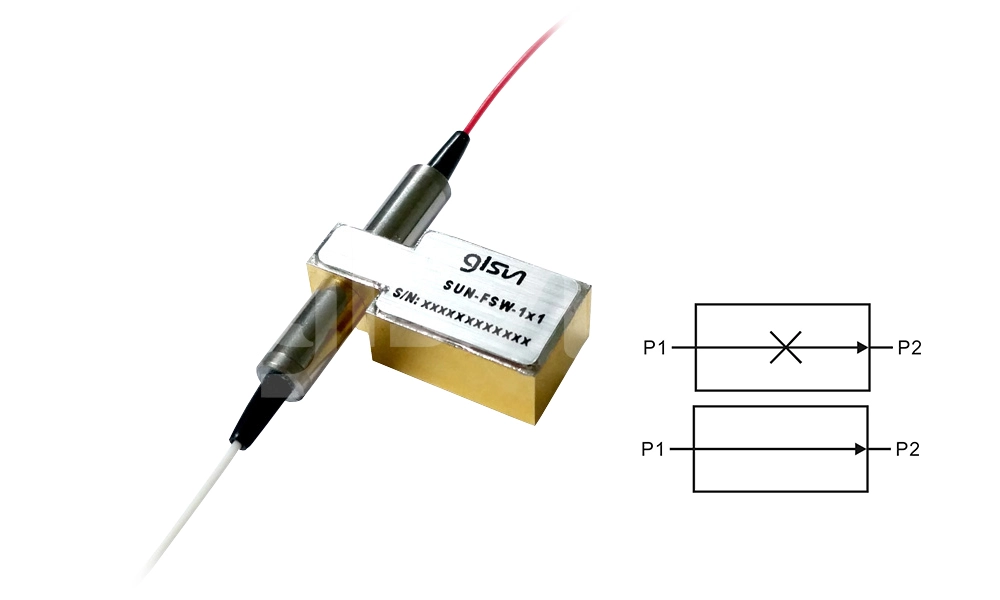

Parrameters | Unit | SUN-FSW | ||
| Dimension | mm | 27.0×12.6×8.2±0.2（L×W×H) | ||
| Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 | |
| Test Wavelength | nm | 850 / 1300 | 1310 / 1550 | |
| Insertion Loss 1, 2 | dB | ≤ 0.5 | ||
| Return Loss 1, 2 | dB | MM ≥ 30 | SM ≥ 50 | |
| Crosstalk 1, 2 | dB | MM ≥ 35 | SM ≥ 55 | |
| PDL | dB | - | ≤0.05 | |
| WDL | dB | ≤ 0.30 | ||
| Repeatability | dB | ≤±0.02 | ||
| Operating Voltage | V | 3.0 or 5.0 | ||
| Durability | Cycles | ≥ 10 Million | ||
| Switching Time | ms | ≤ 8 | ||
| Optical Power | mW | ≤500 | ||
| Operating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~+85 | ||
| Relative Humidity | % | 5~95 | ||
Note: 1. Test at room temperature. 2. Excluding connectors. | ||||
A: Switch Type | B: FiberType | C: Operating Voltage | D: Switch Type | E: Test Wavelength | F: Tube Type | G： Fiber Length (Include connector) | H： Connector |
1×1 | SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: Others | 3：3V 5：5V | L：Latching N：Non-latching | 850：850nm 1310：1310nm 1550：1550nm 1310/1550：1310/1550nm X：Others | 25：250um 90：900um X：Others | 05：0.5m±5cm 10：1.0m±5cm 15：1.5m±5cm X：Others | OO：None FP：FC/PC FA：FC/APC SP：SC/PC SA：SC/APC LP：LC/PC LA：LC/APC X：Others |
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
◆R&D in Laboratory
◆OADM
◆MAN(Metropolitan Area Network)
◆Network Security and Monitoring
