Parrameters | Unit | Specifications |
| Dimension | mm | (L)40.0×(W)14.0×(H)7.5 ±0.2 |
| Wavelength Range | nm | 1520 ~ 1580 |
| Test Wavelength | nm | 1550 |
| Insertion Loss 1, 2 | dB | ≤ 1.2 |
| Return Loss 1, 2 | dB | ≥ 50 |
| Crosstalk 1, 2 | dB | ≥ 40 |
| PDL | dB | ≤0.20 |
| TDL | dB | ≤ 0.30 |
| Repeatability | dB | ≤±0.01 |
| Operating Voltage | V | 3.0 or 5.0 |
| Durability | Cycles | ≥ 10 Billions |
| Switch Type | NA | Latching |
| Switching Time | us | ≤ 100 |
| Pulse Duration | us | ≥ 200 |
| Operating Current | mA | ≤ 200 |
| Maximum Optical Power | mW | ≤ 500 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40~+85 |
Note: 1. Test at room temperature and SOP. 2. Excluding connectors, 0.2dB for one pair connectors. | ||
| A: Switch Type | B: Fiber Type | C: Voltage | D: Wavelength | E:Tube Type | F: Fiber Length | G：Connector |

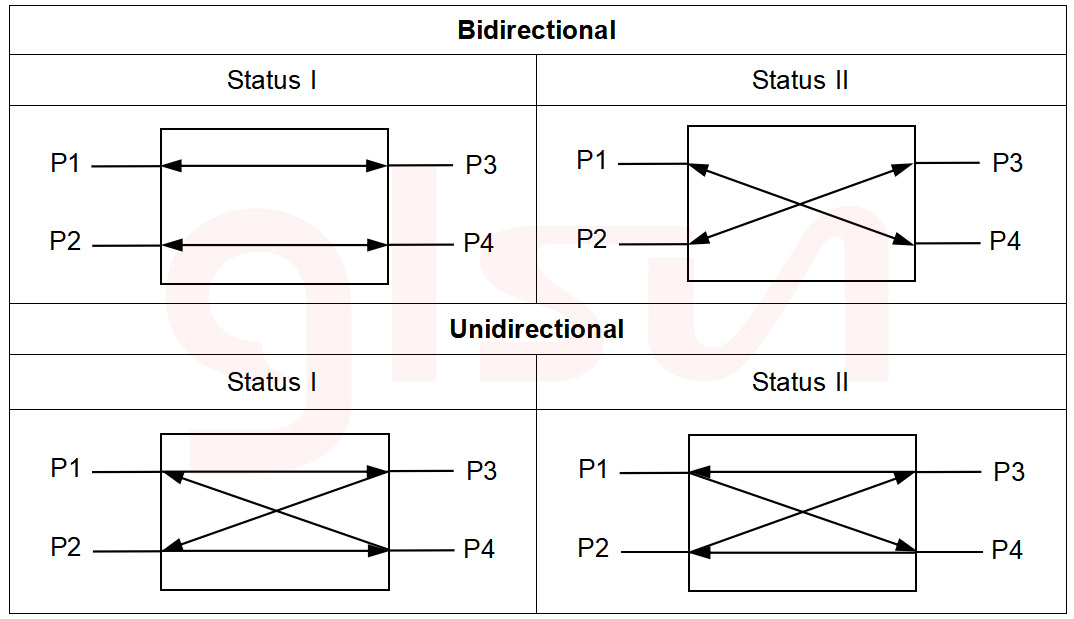

B：Bidirectional U：Unidirectional | SM：SM，9/125 X：Others | 2.5：2.5V 5.0: 5.0V | 1550：1550nm X：Others | 250：250um 900：900um X：Others | 05: 0.5m±5cm 10: 1.0m±5cm X: Others | OO：None FC：FC/PC FA：FC/APC SC：SC/PC SA：SC/APC LC：LC/PC X：Others |
Solid-state high speed
High Stability, High Reliability
Epoxy-free on Optical Path
Fail-safe latching
◆Optical switching
◆Fault Protection
◆Time Delay measurement
◆Sensing system
◆System monitoring
