1xN Cascade Optical Switch Module

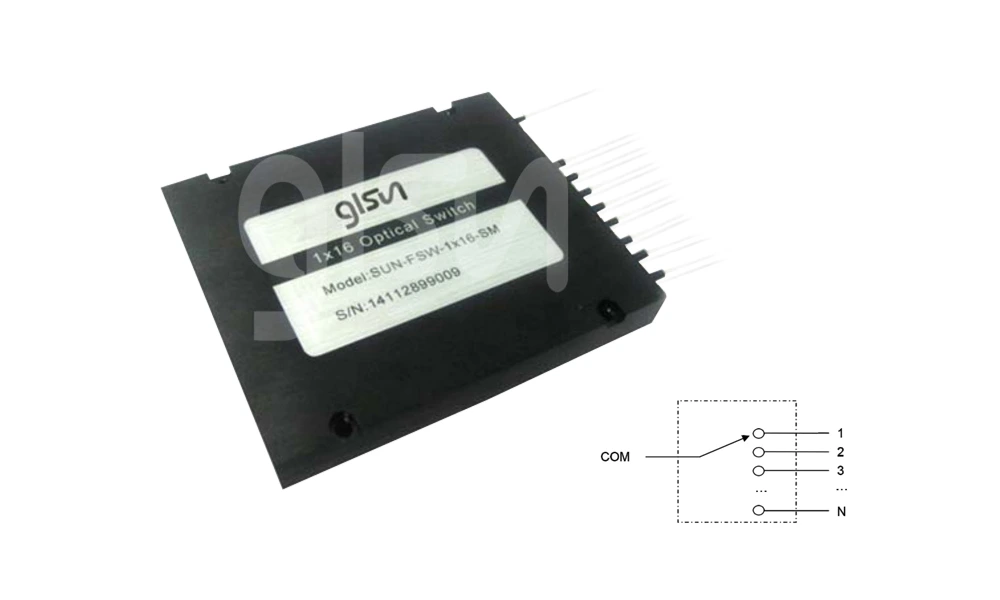

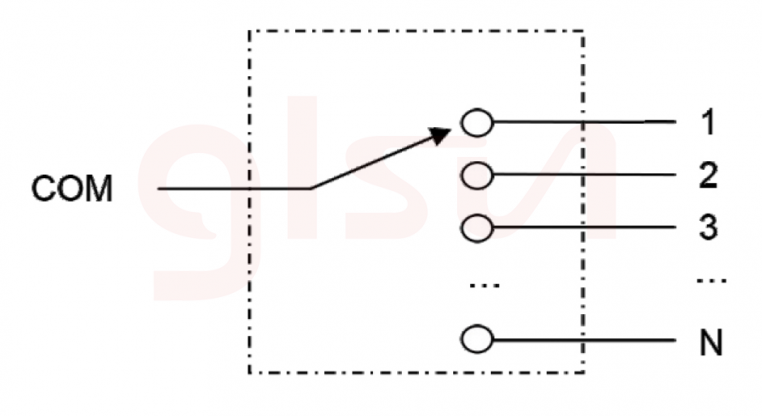

SUN-FSW-1×N Cascade Optical Switch is an ideal component for OADM, OXC, system monitoring and protection. With compact package, this fiber optic switch can be easy to integrate into a high density optical communication system.

Parrameters	Unit	SUN-FSW-1×4	SUN-FSW-1×8	SUN-FSW-1×16
Dimension	mm	13×95×15（L×W×H)
Wavelength Range	nm	850±40 / 1300±40		1260 ~ 1650
Test Wavelength	nm	850 / 1300		1310 / 1550
Insertion Loss(SM)	dB	Typ: 0.8 Max: 1.0	Typ: 1.4 Max: 1.6	Typ: 1.8 Max: 2.0
Insertion Loss(MM)	dB	Typ: 1.0 Max: 1.2	Typ: 1.6 Max: 1.8	Typ: 2.0 Max: 2.2
Repeatability	dB	≤±0.05
Return Loss	dB	MM ≥ 30 SM ≥ 50
Crosstalk	dB	MM ≥ 35 SM ≥ 55
WDL	dB	≤0.35
PDL	dB	≤ 0.15
Power Supply	V	5.0 ± 5%
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤ 8
Optical Power	mW	≤500
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
Relative Humidity	%	5~95

A: Switch Type	B: Fiber Type	C: Operating Voltage	D: Switch Type	E: Test Wavelength	F: Tube Type	G :Fiber Length (Include connector)	H :Connector
1x4 1x8	SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: Others	3：3V 5：5V	L：Latching N：Non-latching	850：850nm 1310：1310nm 1550：1550nm 1310/1550： 1310/1550nm X：Others	25：250um 90：900um X：Others	05：0.5m±5cm 10：1.0m±5cm 15：1.5m±5cm X：Others	OO：None FP：FC/PC FA：FC/APC SP：SC/PC SA：SC/APC LP：LC/PC LA：LC/APC X：Others
