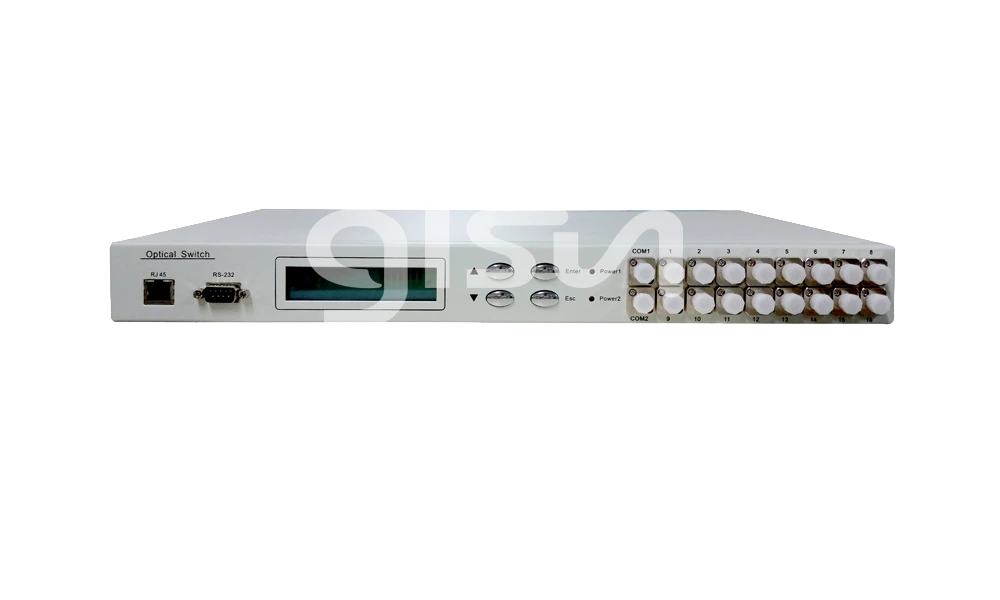

D1xN(N≤8) Rack Optical Switch Equipment

D1xN(N≤8) Rack Mount Optical Switch can control and switch optical route and can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, rack-mounted optical switch is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, rackmout D1xN fiber optic switch is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Parrameters	Unit	SUN-FSW-1 ×N-1U ( N≤8)
Dimension	mm	1U 482.6×250×89（W×D×H)
Wavelength Range	nm	850±40 / 1300±40	1260 ~ 1650
Test Wavelength	nm	850 / 1300	1310 / 1550
Insertion Loss 1,2	dB	Typ:1.0 Max:1.2
Return Loss 1,2	dB	SM ≥ 45 MM ≥ 30
Crosstalk 1	dB	≥ 55
PDL	dB	≤0.1
WDL	dB	≤0.25
Repeatability	dB	≤ ±0.05
Durability		≥ 10 Million
Optical Power	mW	≤500
Switching Time	ms	≤10 ( sequence switch time of adjacent channel)
Monitoring Port	dB	RJ45, RS232
Power Supply	V	AC：100～240V（50/60Hz ） or DC：36～72V
Operating Temperature	℃	-5~+55
Storage Temperature	℃	-40~+80
Relative Humidity	%	5 ~ 95

Note：Customization is available.

aHR0cDovL3ctMzIwNzgtOTE1NjgtNjAzMTcuNDc4OTI0MTY3LnNpdGVzLmhrMzAucWlmZWl5ZS5jb20vcWZ5LWNvbnRlbnQvdXBsb2Fkcy8yMDIzLzExL2NlYzQ4MGI4ZDBkOGE2MDkxZjYwMmVmZTIwZjRkZWEwLmpwZw_p_p100_p_3D_p_p100_p_3D.jpg

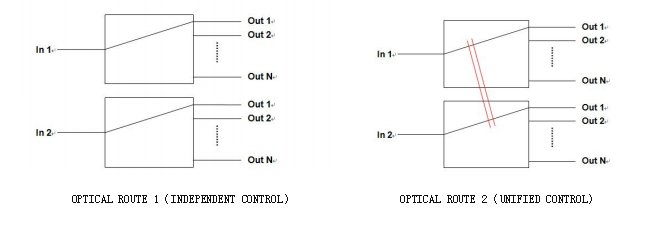

N: Channel	A: Fiber Type	B: Test Wavelength	C: Power Supply Mode	D: Connector	E: Optical Route Control Way	F: Chassis Type
≤ 8	SM: SM, 9/ 125 M5: MM, 50/ 125 M6: MM, 62.5/ 125 X: Others	850: 850nm 1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others	AC: 100-240V DC: 36-72V AC/ DC: 100~240V / 36~72V AC/AC: Dual 100-240V DC/DC: Dual 36~72V X: Others	FP: FC/PC FA:FC/APC SP: SC/PC SA:SC/APC X: Others	1：Unified Control 2：Independent Control 3：Independent Control & Unified Control	1U: L482.6 ×W250 × H89
