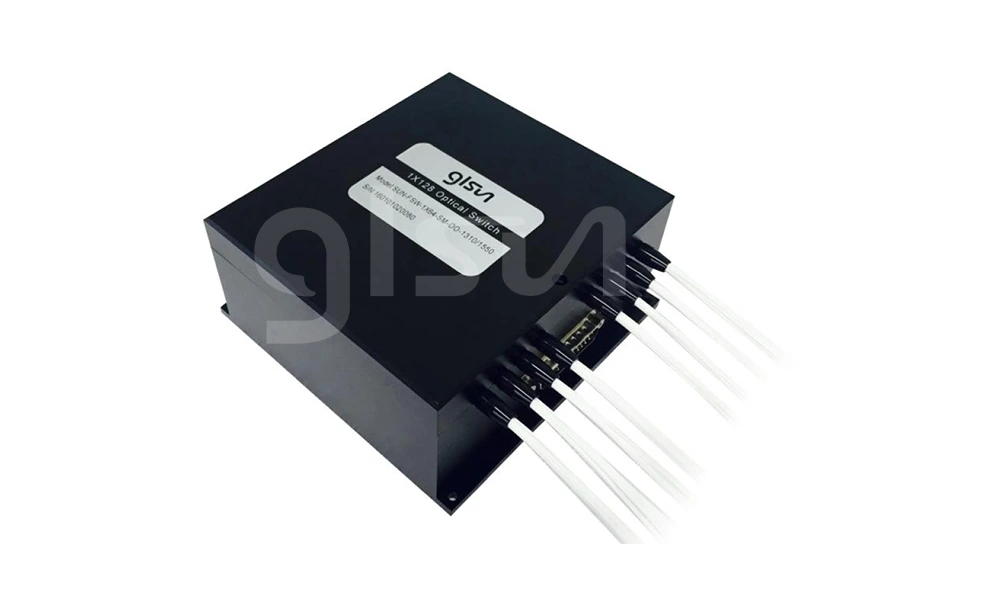

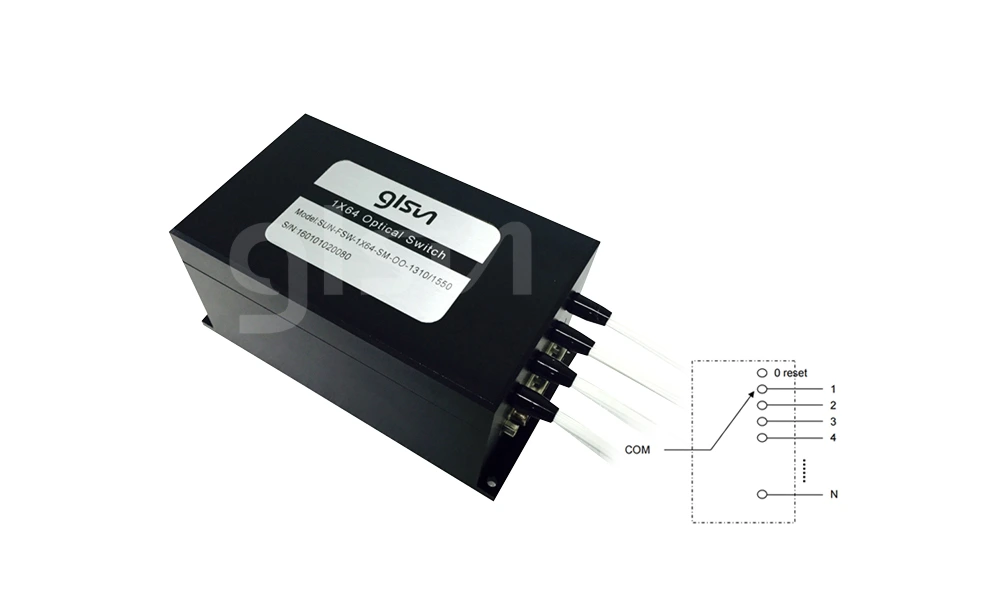

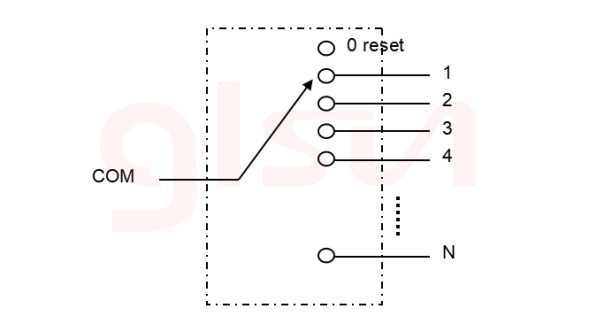

1xN Rotary Optical Switch Module

1xN Rotary Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, this multichannel optical switch is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, this mulitchannel optical switch is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Parrameters	Unit	SUN-FSW-1×N
Dimension	mm	150×80×32 (N≤16)		150×120×32 (17≤N≤32)
		150×80×32 (N≤16)		150×150×70 (65≤N≤128)
Wavelength Range	nm	850±40 / 1300±40		1260 ~ 1650
Test Wavelength	nm	850 / 1300		1310 / 1550
Insertion Loss	dB	N ≤16	17 ≤ N ≤64	65 ≤ N ≤128
		Typ: 0.6 Max: 0.8	Typ: 0.8 Max: 1.0	Typ: 0.8 Max: 1.2
Repeatability	dB	≤±0.05
Return Loss	dB	MM ≥ 30 SM ≥ 50
Crosstalk	dB	MM ≥ 55 SM ≥ 70
WDL	dB	≤0.25
PDL	dB	≤ 0.05		≤ 0.10
Durability	Cycles	≥ 10 Million
Switching Time	ms	10x(n-m)+5 (from port m to n, n>m)
		10x(n-m)+30 (from port n to m, n>m)
Optical Power	mW	≤500
Operating Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Relative Humidity	%	5~95

N: Channel	A: Fiber Type	B: Test Wavelength	C: Tube Type	D: Fiber Length (Include connector)	E: Connector	F: Dimension
1 ~ 128	SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: Others	850: 850nm 850/1310: 850/1310nm 1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others	90:900um X: Others	05: 0.5m±5cm 10: 1.0m±5cm X: Others	OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others	23: 150×80×32-DB15 24: 150×80×70-DB25 26: 150×150×70-DB25 29: 150×120×32-DB25 X: Others
