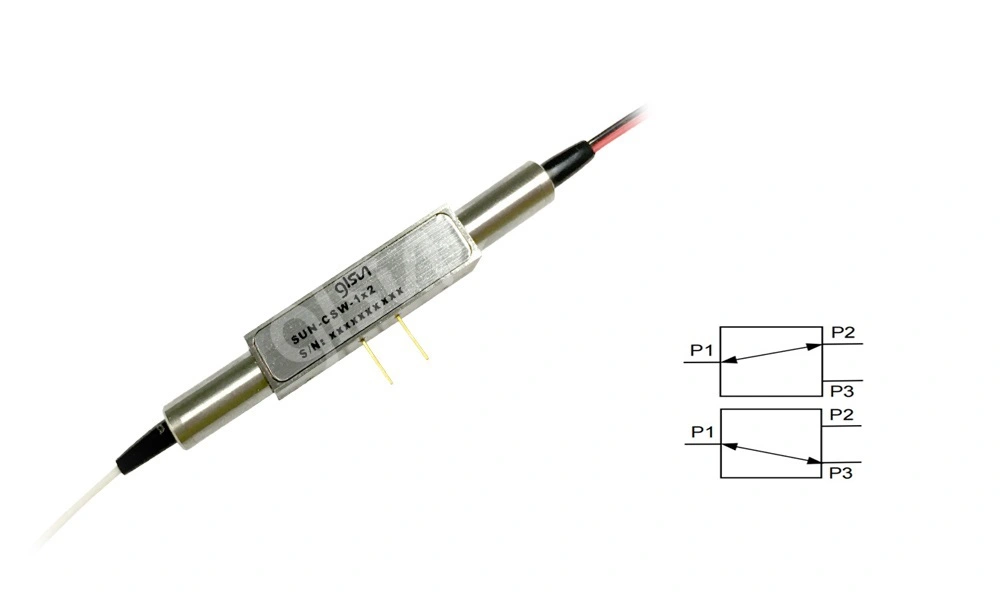

N1×2 Optical Switch

The N1x2 nanosecond optical switch is connected to the optical path by connecting or blocking the optical signal. The switch has non-mechanical configurations and activated via an electrical control signal. Products are widely used in aerospace and military equipment.

Parrameters	Unit	SUN-FSW-1×2H
Dimension	mm	Ⅰstage：(L)23.0×(W)7.5×(H)7.5 ±0.2
Dimension	mm	Ⅱstage：(L)28.0×(W)7.5×(H)7.5 ±0.2
Wavelength Range	nm	1500 ~ 1600
Test Wavelength	nm	1550
Insertion Loss 1, 2	dB	Ⅰstage ≤ 1.0
Insertion Loss 1, 2	dB	Ⅱstage ≤ 1.3
Return Loss 1, 2	dB	≥ 50
Crosstalk ^{1, 2}	dB	Ⅰstage ≥ 18
Crosstalk ^{1, 2}	dB	Ⅱstage ≥ 30
PDL	dB	≤0.05
WDL	dB	≤ 0.30
Repeatability	dB	≤±0.01
Operating Voltage	V	3.0 or 5.0
Durability	Cycles	≥ 10 Million
Switching Time	ns	≤ 300
Maximum Optical Power	mW	≤500
Storage Temperature	℃	-40~+85
Note: 1. Test at room temperature. 2. Excluding connectors.
