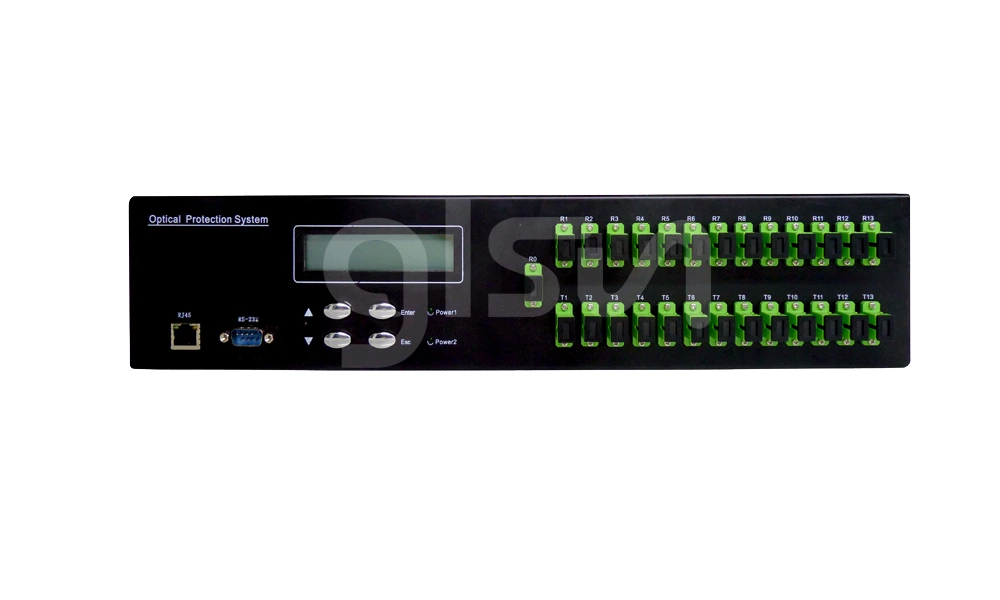

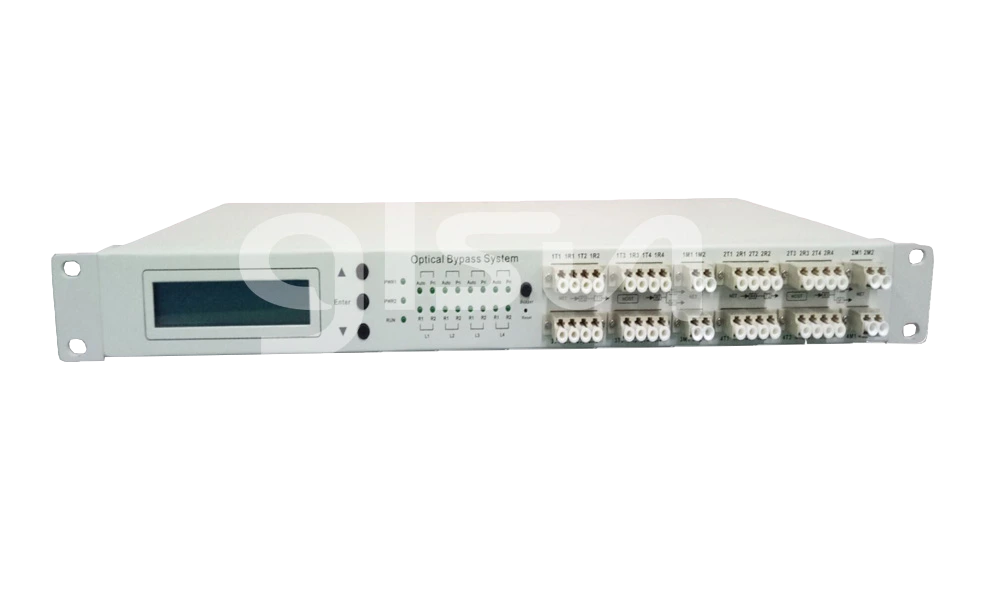

OLP Optical Line Protection Equipment

OLP Optical Line Protection Equipment uses vacant optical fiber from different route to build a backup path. By real-time monitoring the power status in working fiber, it can automatically switch from working fiber to backup fiber when the power value of working fiber lower than a user defined threshold. OLP equipment will provide you a more reliable, flexible and high secure optical transmission network .It is widely used for protecting backbone and important business line.
Parrameters
Unit
OLP 1+1 / OLP 1:1 / OLP 1-1
Chassis Type

19-inch standard 1U rack
Operating Wavelength
nm
1310±50 and 1550±50
Test Wavelength
nm
1310 /1550
Monitoring Power range
dBm
-50 ~ +23
Insertion loss
dB
OLP-1+1:  TX<4.0 、RX<1.5
OLP-1:1:  TX<1.5 、RX<1.5
OLP-1:1:  TX<1.5 、RX<1.5
Return Loss
dB
≥ 45
Switching time
ms<35
Crosstalk
dB
≥ 55
PDL
dB
≤0.05
Durability(Life)

>107
Fiber Type
SM(9/125um)
Connector

SC / PC or SC/APC or LC/PC or LC/APC
Power-down Condition

hold in working path or switch to backup path
Monitoring Port

RJ45、RS-232
Working Power
 VAC: 100 ~ 240(50/60Hz) or DC: 36 ~ 72
Operating Temperature

-10  ~ 60
Storage Temperature

-20  ~ 75


  • Reduce interrupt time of communication and improve maintenance efficiency with quickly recovering communication.

  • Remarkably reduce damage to network caused by fiber failure.

  • Increase network reliability and improve service quality.

  • Harmless switch between working path and secondary path and convenient for line overhaul and cutover.

  • Real-time monitoring power level of fiber.

  • Support remote control, easy management and maintenance.

  • Transparent transmission
