BPS1000 Bypass Optical Protection System

BPS1000 Bypass Optical Protection System integrates optical switching modules, optical monitoring modules and heart rate monitoring, which provides bypass protection when optical network node equipments appear power interruption, hardware failure, software deadlock etc to insure the normal signal transmission. Mainly used in flow control equipment, signal safety analysis, gigabit data communications and other fields.

Parrameters		Unit	Index
Chassis Type		mm	1U standard 19”rack 482.6×220×44 （W×D×H)
Guard Mode			SM 1:1	SM 1+1	MM 1:1	MM 1+1
Test Wavelength		nm	1310 / 1550		850
Insertion Loss 1,2	R1-T3	dB	≤ 1.2	≤ 1.2	≤ 1.5	≤ 1.5
	R2 – T4	dB	≤ 1.2	≤ 1.2	≤ 1.5	≤ 1.5
	R3 – T1	dB	≤ 1.2	≤ 3.5	≤ 1.5	≤ 3.5
	R4 – T2	dB	≤ 1.2	≤ 3.5	≤ 1.5	≤ 3.5
	R3 – T4	dB	≤ 1.2	≤ 4.8	≤ 1.5	≤5.0
	R4 – T3	dB	≤ 1.2	≤ 4.8	≤ 1.5	≤ 5.0
Return Loss		dB	≥ 45		≥ 30
Crosstalk		dB	≥ 55		≥ 35
PDL		dB	≤0.1		≤0.1
WDL		dB	≤0.25		≤0.25
Switching Time		ms	＜ 10		＜ 10
Fiber Type			SM（9/125um）		MM（62.5/125um）
Connector			LC / PC
Communication Port			RS-232 、RJ45
Power Supply		V	AC：85～264V（50/60Hz ） or DC：36～72V
Power Consumption		W	＜ 2.5

1:1 serial mode

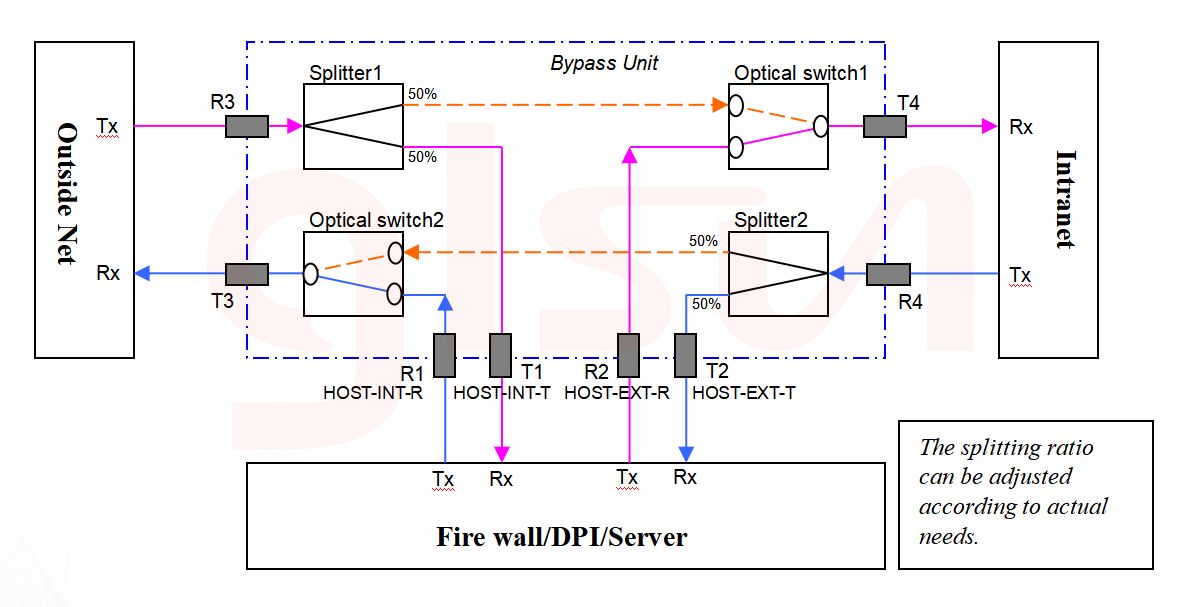

1:1 parallel mode

N: Link Number	B: Guard Mode	C: Mirroring Mode	D: Fiber Type	E: Optical Monitoring	E: Connector Type
L1：support 1 line protection L2：support 2 line protection L4：support 4 line protection X: other	1：1: 1：1 serial mode 1+1(xx:yy): 1+1 parallel mode( xx:yy means splitting ratio) X: other	Empty：without mirroring M50: 50% mirroring splitting M40: 40%mirroring splitting M30 : 30% mirroring splitting X: other	SM: 9/125 single mode，1310/1550nm M6: 62.5/125 multi-mode, 850nm X: other	PD0: no optical monitoring PD1:R1 or R2 optical monitoring PD2: R1 R2 optical monitoring PD4: R1-R4 optical monitoring X: other	LP: LC/PC LA: LC/APC X: other
