1xN OSW Cards

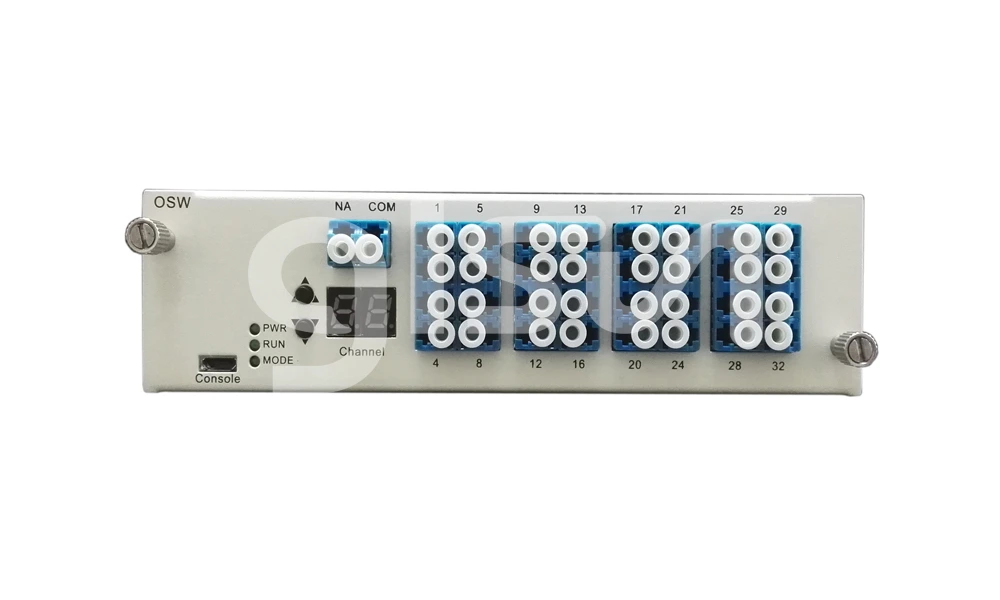

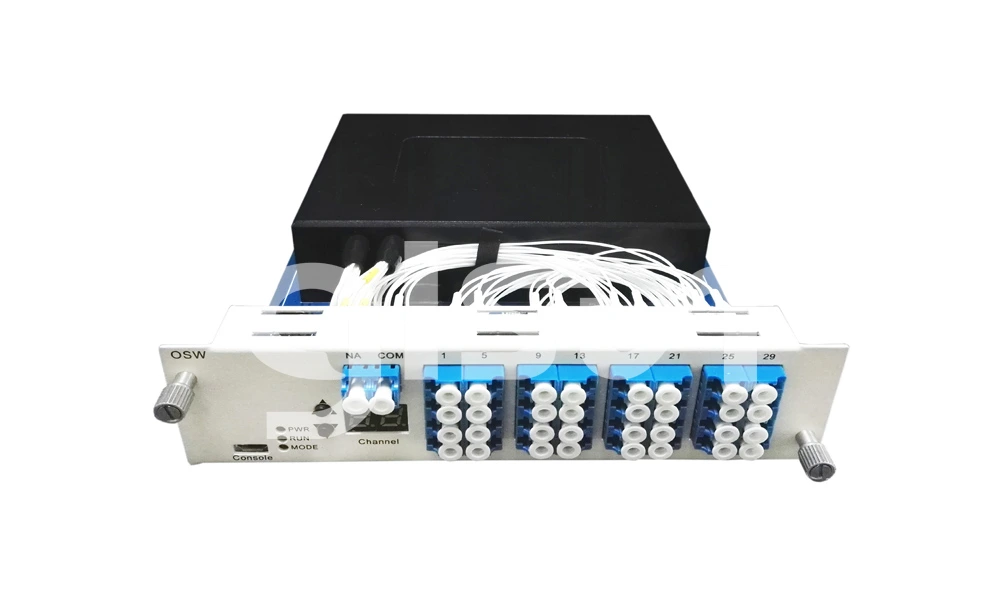

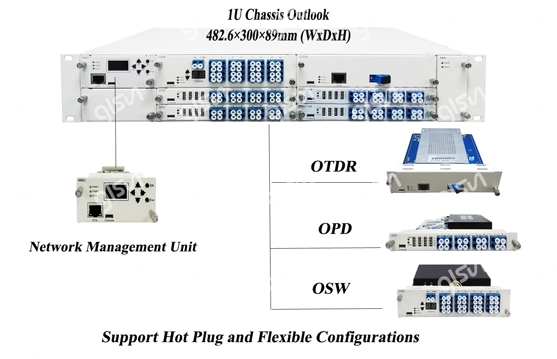

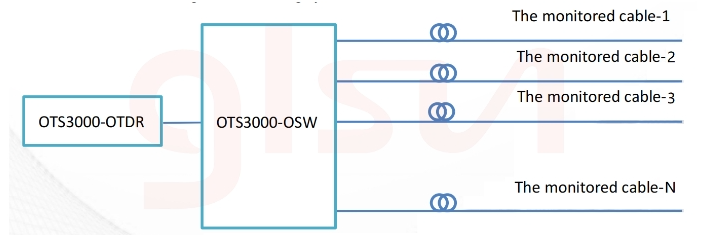

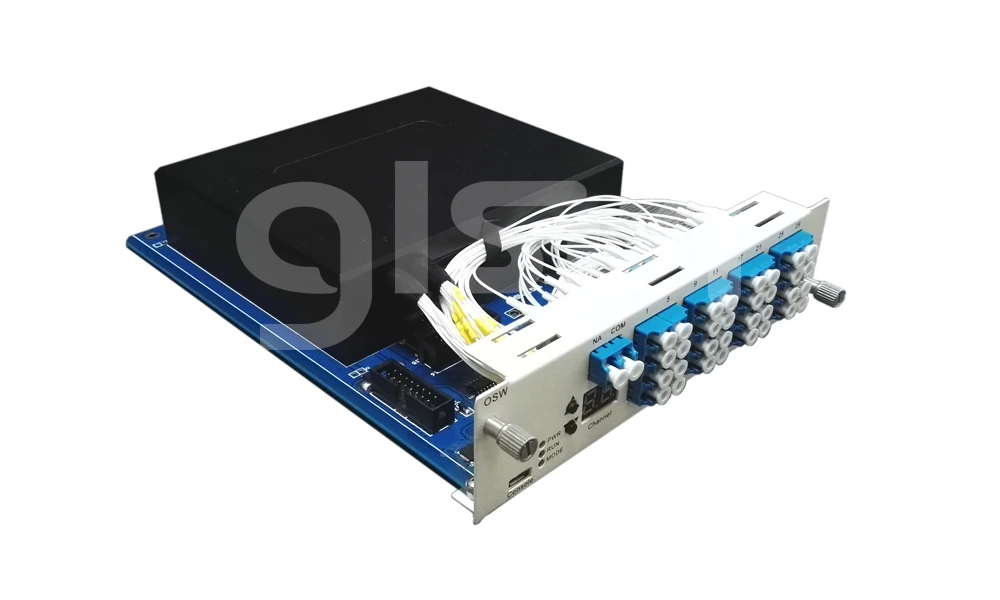

OTS3000-OSW is a kind of function card in optical communication integrated platform. 1xN Optical Switch is a kind of functional device, with the ability of controlling and switching optical route. It can be manually selected from front panel or Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system

Parrameters	Unit	OTS3000-OSW
Dimension	mm	160×200×21（WxDxH)
Maximal Power Consumption	W	2
Wavelength Range	nn	850±40 / 1300±40		1260 ~ 1650
Test Wavelength	nm	850 / 1300		1310 / 1550
Insertion Loss	dB	1<N≤32	32<N≤64		64<N≤128
		Typ:1.0 Max:1.2	Typ:1.2 Max:1.7		Typ:1.4 Max:2.0
Return Loss	dB	MM≥30 SM≥45
Crosstalk	dB	≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
Repeatability	dB	≤±0.05
Durability	times	107
Optical Power	mW	≤500
Switching Time	ms	≤10（sequence switch time of adjacent channel）
Operating Temperature	℃	-5 ～ + 55
Storage temperature	℃	-20 ~ +70
Relative Humidity		5% ~ 95% (non-condensing)

A: Channel	B: Fiber Type	C: Operating Wavelength	D: Connector Type
1x16：16 Channels 1x32：32 Channels 1x72：72 Channels X: Others	SM: SM 9/125; M5: MM 50/125; M6: MM 62.5/125 X: Others	850：850nm 1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others	LP: LC/PC X: Others
