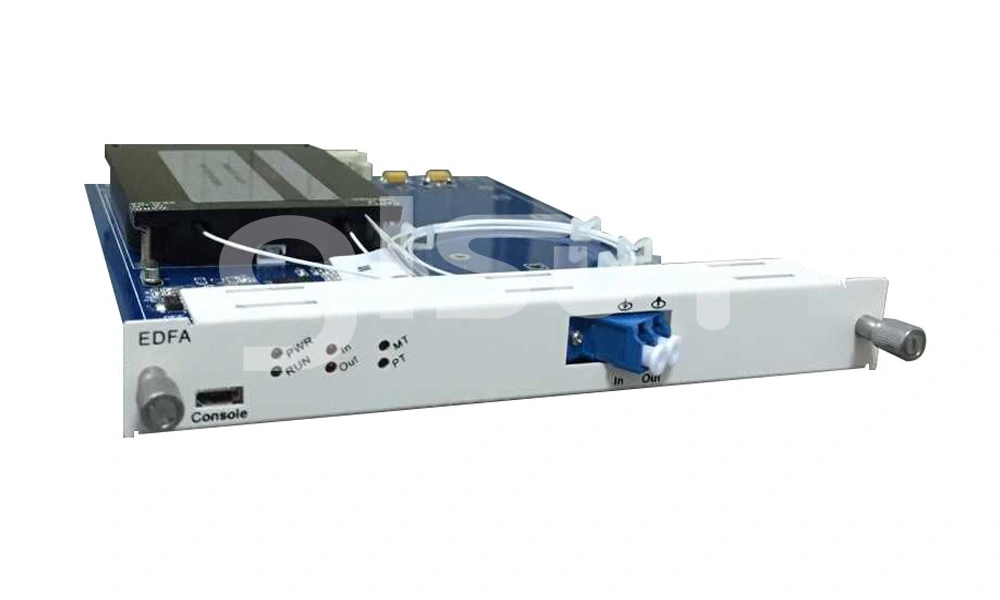

EDFA Erbium Doped Fiber Amplifier

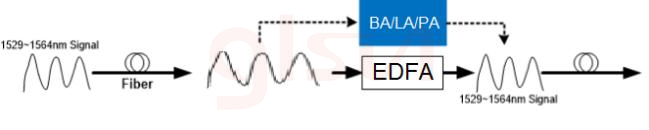

OTS3000-EDFA Erbium Doped Fiber Amplifier is different from OEO and can directly amplify the signal of multi-wavelength from the C-band to effectively extend the transmission distance when the optical signal is not enough to meet the requirement of the optical transmission distance. EDFA can work with other function cards (such as DWDM,OADM,DCM and OTU）together to construct the complete optical network transmission system.

Parrameters	Unit	OTS3000-BA	OTS3000-LA	OTS3000-PA
Dimension	mm	160×200×21（W×D×H)
Max Power Consumption	W	15
Input Power	dBm	-15 ~ 8	-30 ~ 5	-30 ~ 5
Gain	dB	15	24	18
Saturated Output Power	dBm	16	13	13
Wavelength Range	nm	1529 ~ 1564
Flatness	dB	≤ 1.5
Noise Figure	dB	≤ 5.0
Input/ Output Pump Leakage	dBm	≤ -40
Return Loss	dB	≤ -45
Input/Output Isolation	dB	≥ 30
Polarization Dependent Gain	dB	≤ 0.3
Polarization Mode Dispersion	ps	≤ 0.5
Working Mode		AGC/APC/ACC
Connector Type		LC/PC
Operating Temperature	℃	-5~+55
Storage Temperature	℃	-20~+70
Relative Humidity		5%~95%(non-condensing)

A: Amplifier Type	B: Standard Output Power	C: Max Gain	D: Input Power Range	E: Connector Type
BA: Power amplifier LA: Line amplifier PA: Pre-amplifier X: Others	16: Max +16dBm 13: Max+13dBm X: Others	G24: Max 24dB G18: Max 18dB G15: Max 15dB X: Others	A：-15 dBm ~ +8 dBm B：-30 dBm ~ -5 dBm X: Others	LP: LC/PC X: Others
