AWG Array Waveguide Grating Equipment

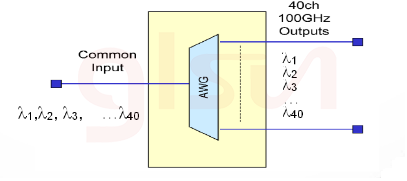

OTS3000-AWG is a kind of function card in optical communication integrated platform. Array Waveguide Grating system (abbr. AWG) can effectively save the optical fiber resource and networking cost. It is the solution of optical fiber resource shortage and multi-service transparent transmission for MAN convergence and access layer to enable the network to be constructed and operated in a short time. Due to its low cost, low power consumption, and compact size features, AWG becomes an ideal transmission solution of low price and high-performance choice.

Parrameters	Unit	OTS3000-AWG
Dimension	mm	160×200×43（W×D×H)
Max Power Consumption	W	9
Wavelength Range	nm	1529.55 ~ 1560.60
Channel Spacing	Ghz	100
Channel Passband	nm	±0.1
Passband Flatness	dB	≤ 0.5
Channel	λ	40
Insertion Loss	dB	≤ 6.5
Center Wavelength Accuracy	nm	≤ 0.05
Isolation	dB	Adjacent channel isolation ≥25 Non-adjacent channel isolation≥30
Crosstalk	dB	≥21
Return Loss	dB	SM ≥ 40
PDL	dB	≤ 0.5
Polarization Mode Dispersion	ps	≤ 0.5
Optical Power	mw	≤ 500
Operating Temperature	℃	-5~55
Storage Temperature	℃	-20~+70
Relative Humidity		5%~95%(non-condensing)

A: Channel	B: Multiplex Type	C: The Starting Channel	D: Connector Type
40：40 Channels X: Others	M: MUX D: DEMUX X: Others	C20：C20 1561.42 C21：C21 1560.61 … Refer to ITU DWDM Wavelength Table	LP: LC/PC X: Others
