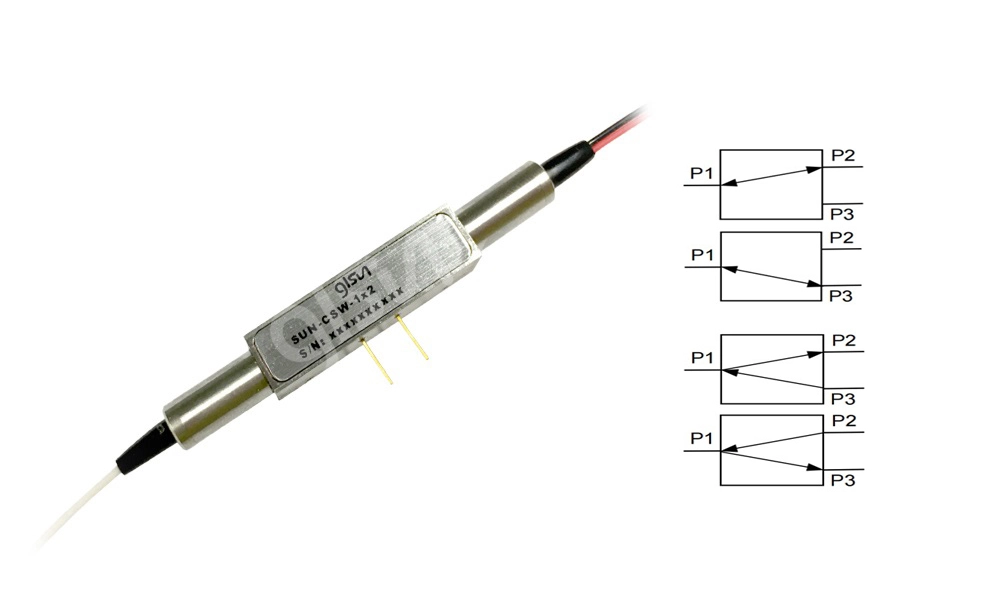

1x2 Magneto Optical Switch

GLSUN M1x2 magnet optical switch is connected to the optical path by connecting or blocking the optical signal. This 1x2 magneto optical switch has non-mechanical configurations and activated via an electrical control signal. The optical switch also has build-in circulator and isolator functions. Products are widely used in Sensing system and aerospace equipment.

Parrameters	Unit	1x2S
Dimension	mm	(L)29×(W)7.3×(H)6 ±0.2
Wavelength Range	nm	1520 ~ 1580
Test Wavelength	nm	1550
Insertion Loss	dB	≤ 1.0
Return Loss	dB	≥ 50

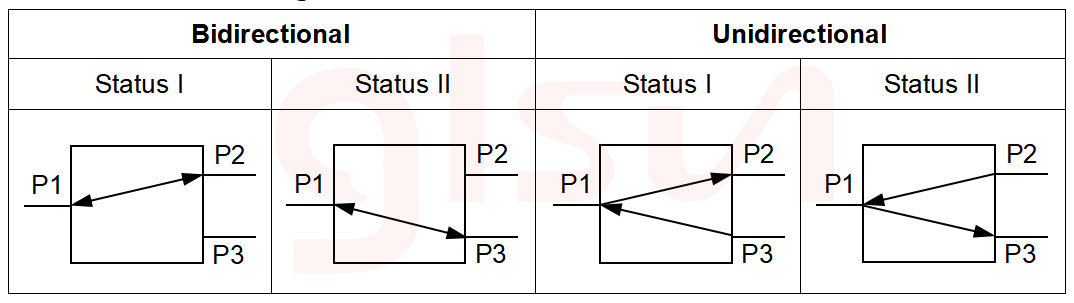

Crosstalk	dB	Bidirectional ≥ 20
Crosstalk	dB	Unidirectional ≥ 40
PDL	dB	≤0.20
Repeatability	dB	≤±0.01
Operating Voltage	V	Unidirectional：5.0±10%
Operating Voltage	V	Bidirectional：2.5±10%
Switching Time	us	≤100（typ：50）
Drive Current	mA	110~190
Durability	Cycles	≥ 30 Billions
Switch Type	NA	Latching
Pulse Duration	us	200~500
Operating Current	mA	≤ 200
Optical Power	mW	≤ 500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40~+85
Relative Humidity	%	5 ~ 95
