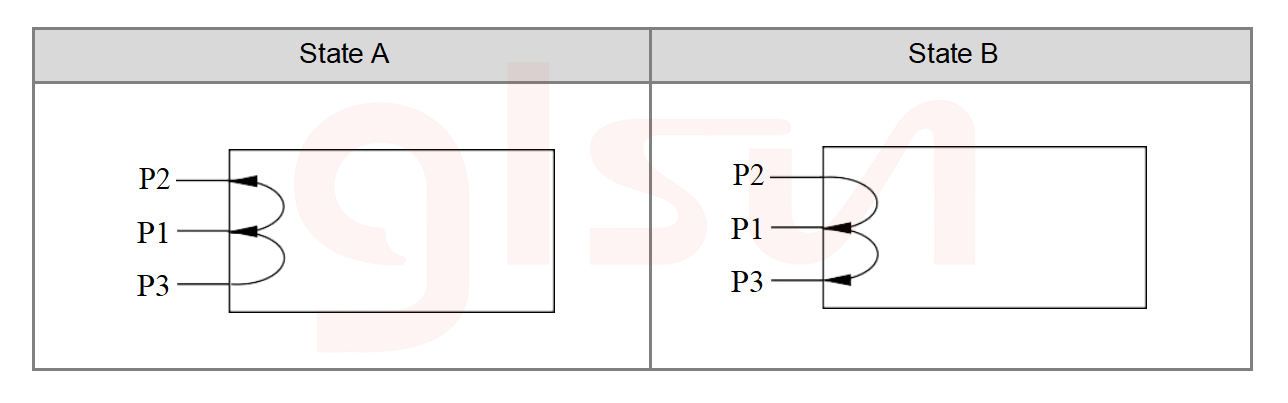

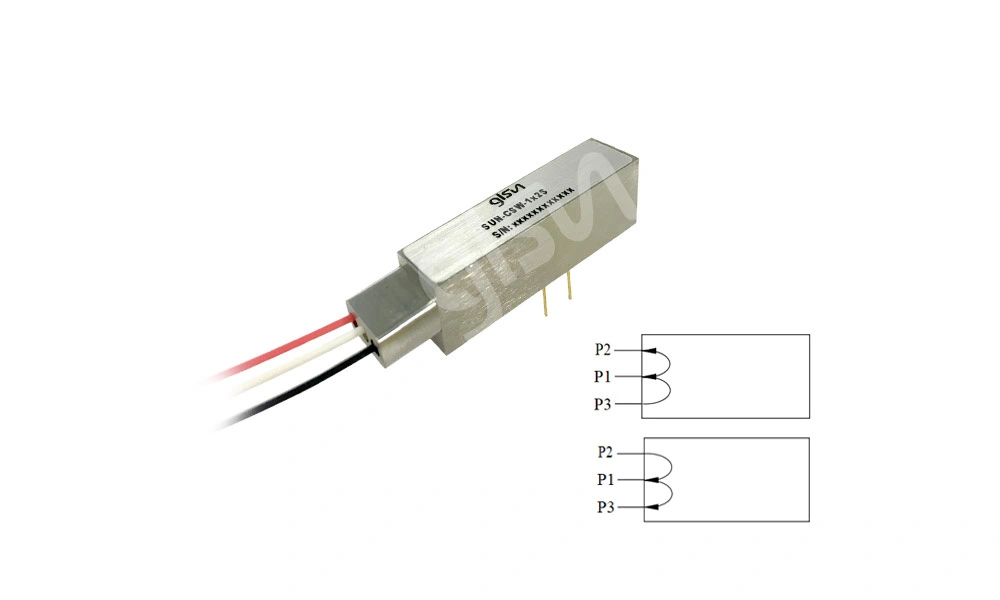

Single-end 1x2 Magnet Optical Switch
SpecificationParrametersUnit1x2SDimensionmm(L)39×(W)9×(H)9.5 ±0.2Wavelength Rangenm1520 ~ 1580Test Wavelengthnm1550Insertion LossdB≤ 1.0Return LossdB≥ 50CrosstalkdBBidirectional ≥ 30Unidirectional ≥ 4
Parrameters | Unit | 1x2S |
| Dimension | mm | (L)39×(W)9×(H)9.5 ±0.2 |
| Wavelength Range | nm | 1520 ~ 1580 |
| Test Wavelength | nm | 1550 |
| Insertion Loss | dB | ≤ 1.0 |
| Return Loss | dB | ≥ 50 |
| Crosstalk | dB | Bidirectional ≥ 30 |
| Unidirectional ≥ 40 | ||
| PDL | dB | ≤0.20 |
| Repeatability | dB | ≤±0.01 |
| Operating Voltage | V | 5.0±10% |
| Switching Time | us | ≤100（typ：50） |
| Drive Current | mA | 110~190 |
| Durability | Cycles | ≥ 30 Billions |
| Switch Type | NA | Latching |
| Pulse Duration | us | 200~500 |
| Operating Current | mA | ≤ 200 |
| Optical Power | mW | ≤ 500 |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40~+85 |
| Relative Humidity | % | 5 ~ 95 |
| A: Switch Type | B: Fiber Type | C: Voltage | D: Wavelength | E:Tube Type | F: Fiber Length | G：Connector |
1X2S/B： 1X2 single end Bidirectional 1X2S/U： 1X2 single end Unidirectiona | SM：SM，9/125 X：Others | 5.0: 5.0V | 1550：1550nm X：Others | 250：250um 900：900um X：Others | 05: 0.5m±5cm 10: 1.0m±5cm X: Others | OO：None FP：FC/PC FA：FC/APC SP：SC/PC SA：SC/APC LP：LC/PC LA：LC/APC X：Others |
Solid-state high speed
High Stability, High Reliability
Epoxy-free on Optical Path
Fail-safe latching
◆Optical channel blocking
◆Configurable Add/Drop
◆System monitoring,Test&measurement
◆Fiber-optics sensing system
