1x8 Magnet Optical Switch

The M1x8 optical switch is connected to the optical path by connecting or blocking the optical signal. This 1x8 magneto optical switch has non-mechanical configurations and activated via an electrical control signal. This fiber optic switch also has build-in circulator and isolator functions. Products are widely used in sensing system and aerospace equipment.

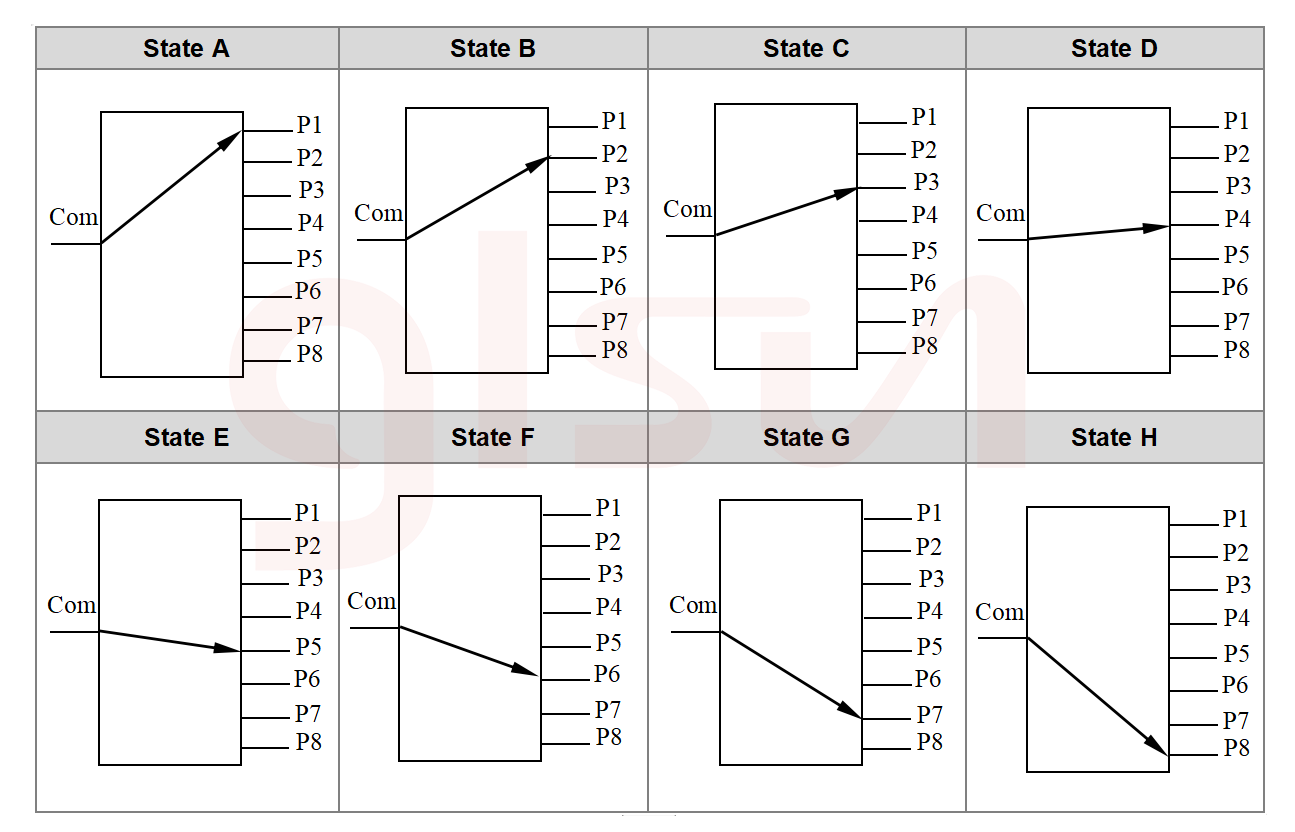

Parrameters	Unit	Specifications
Dimension	mm	(L)40.0×(W)33.0×(H)7.5 ±0.2
Wavelength Range	nm	1520 ~ 1580
Test Wavelength	nm	1550
Insertion Loss 1, 2	dB	≤ 2.0
Return Loss 1, 2	dB	≥ 50
Crosstalk ^{1, 2}	dB	≥ 40
PDL	dB	≤0.20
TDL	dB	≤ 0.30
Repeatability	dB	≤±0.01
Operating Voltage	V	3.0 or 5.0
Durability	Cycles	≥ 10 Billions
Switch Type	NA	Latching
Switching Time	us	≤ 100
Pulse Duration	us	≥ 200
Operating Current	mA	≤ 200
Maximum Optical Power	mW	≤ 500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40~+85
Note: 1. Test at room temperature and SOP. 2. Excluding connectors, 0.2dB for one pair connectors.
