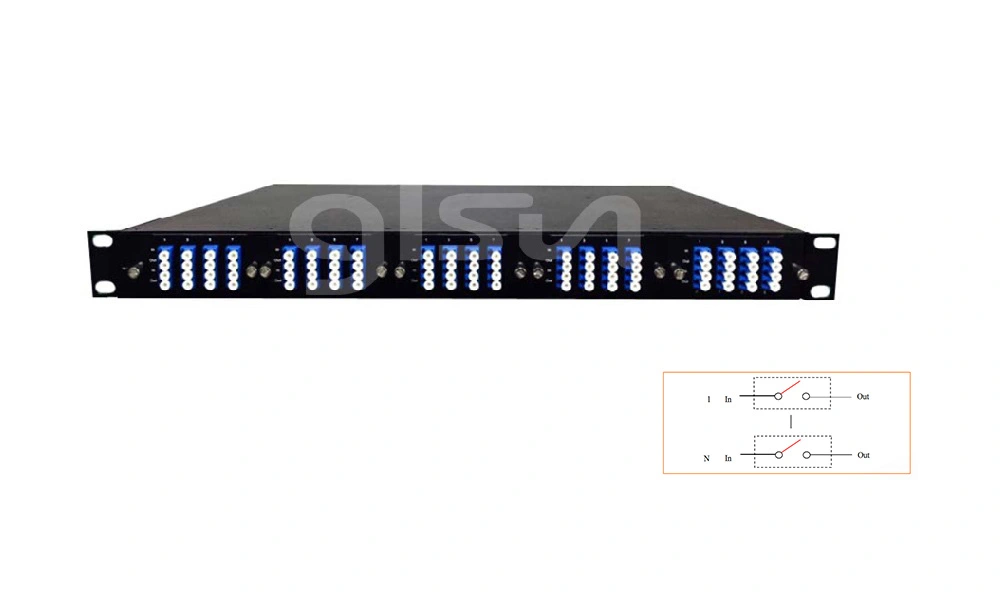

N-1×1 Optical Switch Equipment

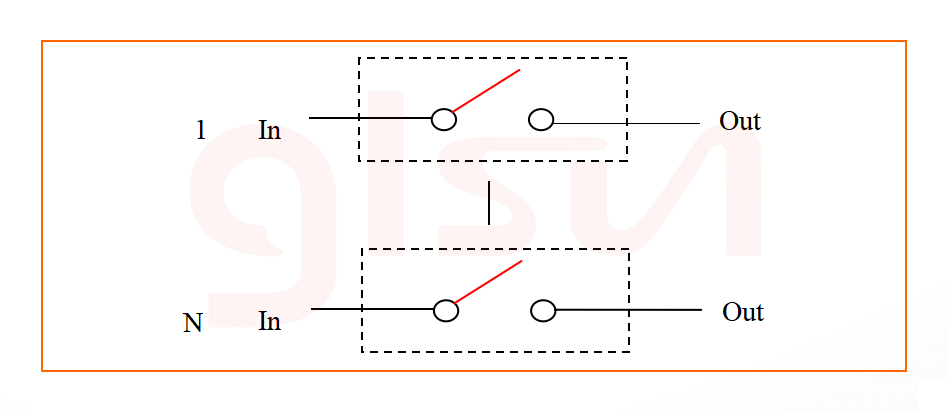

N-1×1 Optical Switch is an optical path conversion device used in optical monitoring of the LAN multi-light source / detector automatically access and light multi-ports sensory dynamic monitoring system in optical transmission systems; as well as optical testing systems for fiber optics, optical devices, networks and fiber optic cable testing in open country project; optical devices assembly and adjusting, etc.

Parrameters	Unit	OSW2000 N-1×1 Optical Switch Equipment
Chassis Type	mm	1U standard 19”rack 482.6×300×44 （W×D×H)
Channel No.	nm	N ≤ 40
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss	dB	≤ 0.8
Return Loss	dB	≥ 50
Crosstalk	dB	≥ 55
PDL	dB	≤0.1
WDL	dB	≤0.25
Repeatability	dB	≤ 0.05
Switch Type	dB	Latching
Switching Time	ms	＜ 8
Fiber Type		SM（9/125um）
Connector		LC /UPC
Monitoring Port		RJ45、 USB（RS-232）
Working Power Supply （Plug-type）	V	AC: 100 ～ 240（ 50/60Hz ） or DC: 36 ～ 72
Power Consumption	W	＜ 20
Operating Temperature	℃	-5 ～ 55
Storage Temperature	℃	-40 ～ 75

Note：Customization is available.

图片关键词

A: Rack Type	B: The Heart/Communication Interface	C: The Power Supply Mode
1U:482.6×300×44mm X: Others	1：RJ45/USB（RS-232） X: Others	AC: 100~240V	AC/AC:Dual100~2 40V
		DC: 36~72V	DC/DC: Dual 36~72V
		AC/DC:100~240V&36~72V	X: Others

A: Channel No.	B: Fiber Type	C: Operating Wavelength	D: Connector
1~8	SM:SM 9/125 M5: MM 50/125 M6: MM 62.5/125 X: Others	850: 850nm 1310: 1310nm 1550: 1550nm 1310/1550: 1310/1550nm X: Others	LP: LC/PC X: Others
