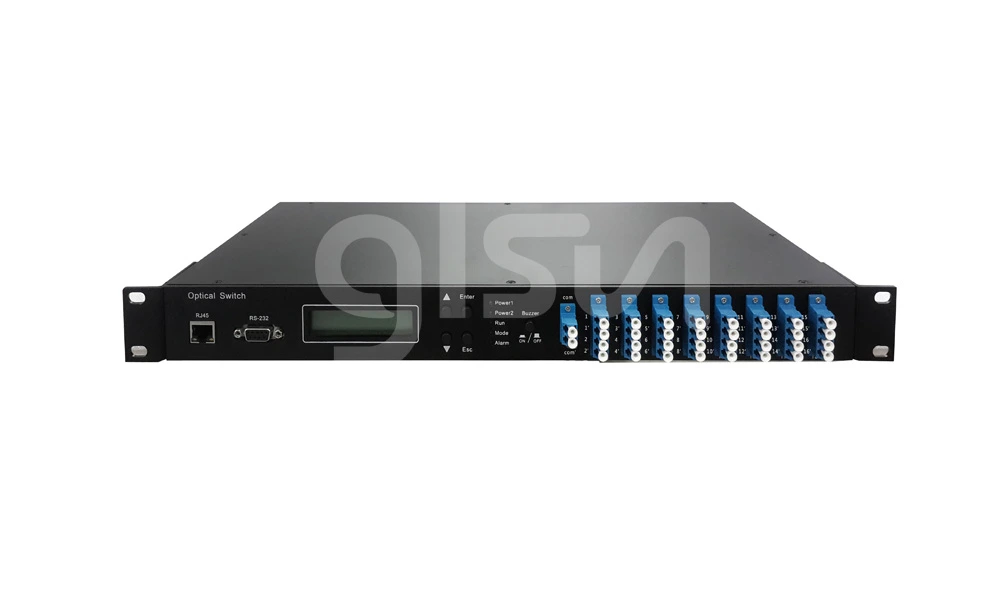

Multi-channel Optical Link Selector Equipment

Multi-channel Optical Link Selector is mainly used in multi-channel optical monitoring of optical transmission system, LAN multi-source/detector auto-exchange, optical sensing multi-point dynamic monitoring system, cable test of optical fiber, optical devices, networks and field projects in optical test system, optical device debugging and installation, monitoring multi-link network data security in data security,etc

Parrameters	Unit	Multi-channel Optical Link Selector
Chassis Type	mm	1U standard 19”rack 482.6×250×44 （W×D×H)
		2U standard 19 "rack 482.6×303×89（W×D×H)
Channel No.		16 to 2（ D1×8 ）	32 to 2（ D1×16 ）
Test Wavelength	nm	1310 / 1550
Insertion Loss	dB	Typ: < 0.6dB， Max: < 1.0 dB
Repeatability	dB	≤ ±0.02
Return Loss	dB	≥ 45
Crosstalk	dB	≥ 70
PDL	dB	≤0.1
WDL	dB	≤0.25
Switching Time	ms	< 10 ms (Sequence switch time of adjacent channel）
Fiber Type		SM（9/125um）
Connector		LC / PC
Monitoring Port		RJ45、RS-232
Working Power Supply（Plug-type）	V	AC: 100 ～ 240（50/60Hz） or DC: 36 ～ 72
Power Consumption	W	＜ 10
Operating Temperature	℃	-5 ～ 55
Storage Temperature	℃	-40 ～ 85

Note：Customization is available.

N: Channel No.	A: Fiber Type	B: Operating Wavelength	C: Power Supply Mode	D: Connector Type	E: Chassis Size
D1×8: 16 to 2 D1×16: 32 to 2 X:Others	SM:9/125, Single mode M6:62.5/125, multimode X: Others	13/15: 1310/1550nm 850: 850nm X: Others	AC: 100~240V DC: 36~72V AC/DC:100~240V&36~72V AC/AC:dual 100~240V DC/DC:dual 36~72V X: Others	LP: LC/PC X: Others	1U:482.6×250×44mm 2U:482.6×303×89mm X: Others
