OEO Optical Electrical Optical Converter Equipment

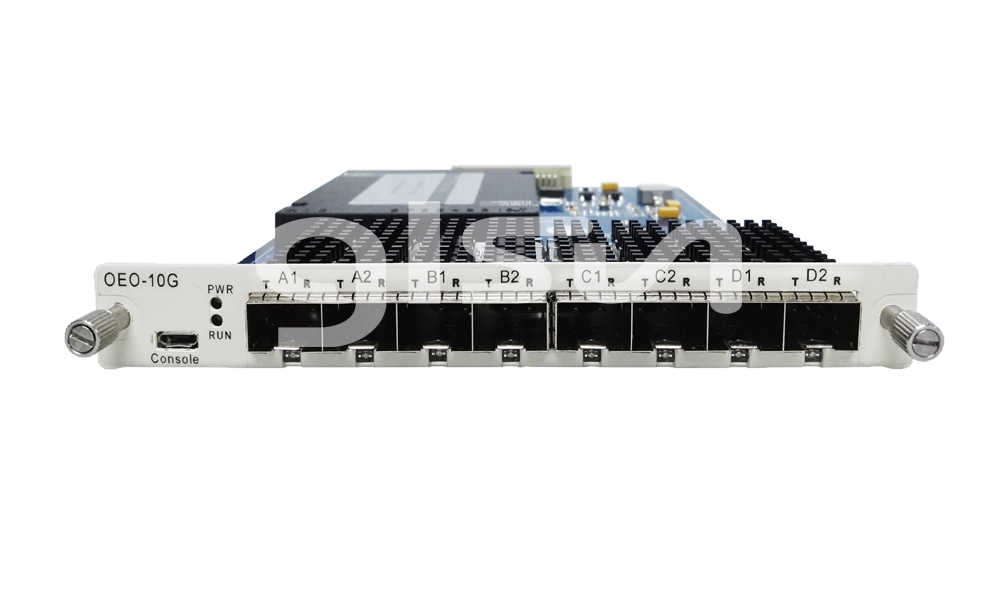

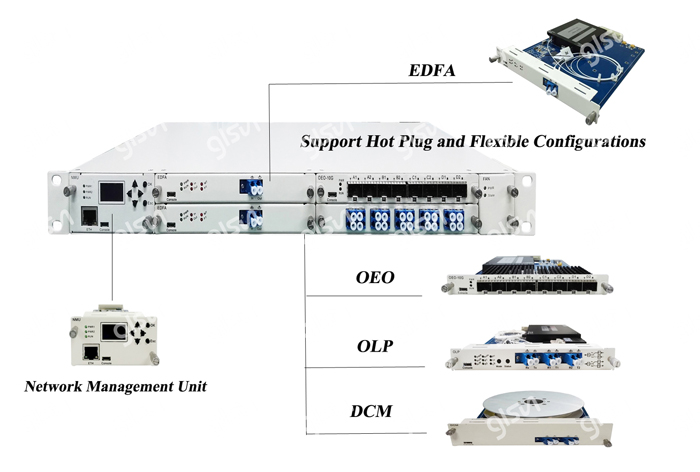

OTS3000-OEO Optical Electrical Optical Converter (OEO Converter)enables the optical signal be regenerated and amplified to realize SM and MM interconversion, OEO amplification with the principle of optical-electron-optical transformation. This OEO transponder becomes an ideal optical signal amplifying solution of low price and high performance choice to work with DWDM, OADM, DCM...together to construct the complete optical network transmission system.

Parrameters	Unit	OTS3000-OEO
Dimension	mm	160×200×21（W×D×H)
Max Power Consumption	W	3.5( without SFP module)
Rate	Gb/s	Support Ethernet 1.25 Gb/s, 10.3Gb/s, 11.1Gb/s with FEC. Support STM-16 2.488Gb/s, STM-64 9.95Gb/s. Support others at 8.5Gb/s,10.5Gb/s,11.3Gb/s,11.7Gb/s rate.
Maximal Slot Quantity		=8
Heat Dissipation		Available to choose
Coding Scheme		NRZ
3R Function		Support 3R
Alarm Management		Provide Optical receiving power alarm, optical transmission alarm, temperature alarm etc.
Working Mode		Loopback mode / Forward mode
Crossing Function		Single board support the crossing function of group optical channel service
WDM Type		CWDM / DWDM
Function Implementation		Wavelength conversion, SM and MM interconversion, Optical signal regeneration and amplification
Operating Temperature	℃	-5~55
Storage Temperature	℃	-20~+70
Relative Humidity		5%~95%(non-condensing)

A: Rate	B: Working Mode	C: Maximal slot Quantity	D: Heat Dissipation Ways
10G: 10G rated SFP+ 2.5G: 2.5G rated SFP 1.25G: 1.25G rated SFP X: Others	L: Loopback mode F: Forward mode X: Others	8: 8 SFP max 4: 4 SFP max 2: 2 SFP max X: Others	1: With heat dissipation 0: Without heat dissipation X: Others
