200G Transponder/Muxponder

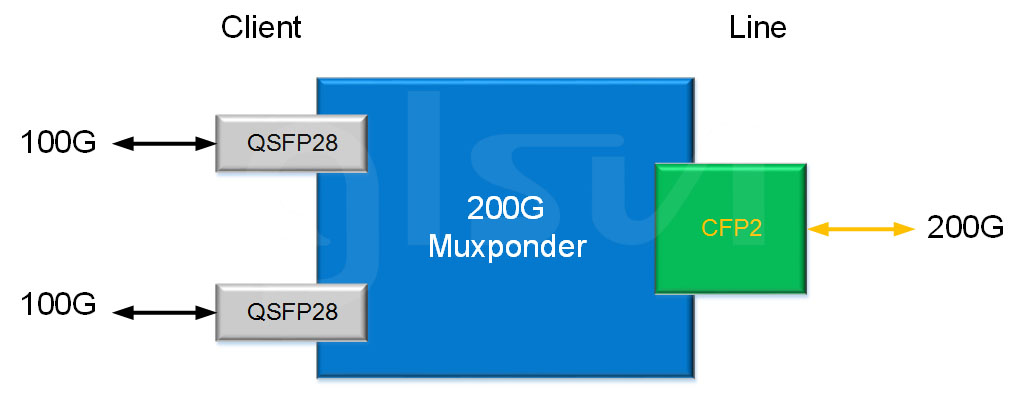

The 200G Muxponder Transmitter card supports two QSFP28 Client interface and one CFP2 line-side interface to support single-channel 200Gbps large grain data transfers.The industry's most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission. It allows maximum flexibility and scalability for fiber optic connectivity in wavelength division multiplexing (WDM) and dark fiber applications and provides ideal solution for enterprise, data center, campus and metro networks.

Parrameters	Unit	OTS3000-OTUMC2 200G
Dimension	mm	160×200×43（W×D×H)
Max Power Consumption	W	40(including transceiver)
Occupied Slot Number		Support OTS3000 series chassis, occupy 2 slots
Line Side Wavelength Range	nm	1529.55 ~ 1560.60 (C-Band)
Line Side Channel Spacing	Ghz	100 or 50
Line Side Interface		1xCFP2 coherent module, hot-pluggable
ClieInt Side Interface		2xQSFP28 module, hot-pluggable
Support Service Type		6100GE,OTU4
Support DWDM		C-band 50GHz 96 wavelengths
FEC function		Plug-in moduleSupport SDFEC and G.709 FEC
Network Management function		Real time monitoring of the port working state, including: transmitting optical power and receiving optical power,temperature, etc
Operating Temperature	℃	-5~55
Storage Temperature	℃	-20~+70
Relative Humidity		5%~95%(non-condensing)
