SOA Semiconductor Optical Amplifier

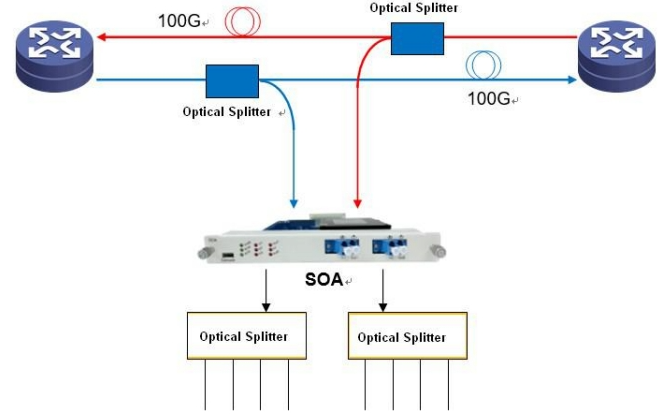

OTS3000-SOA Semiconductor Optical Amplifier is kind of function card in optical communication platform. It applies O-band 100GE high speed optical signal amplification to prolong its transmission distance when the optical signal is not enough to meet the requirement of the optical transmission distance. Its maximal rate can be 160Gb/s to support one optical link and two optical link amplification, users can choose one optical input with one output amplification or two optical input with twop output amplification.

Parrameters	Unit	OTS3000-SOA1	OTS3000-SOA2
Dimension	mm	16020021（WDH)
Max Power Consumption	W	12	23
Input Power (total power)	dBm	-16 ~ 5
Gain	dB	13 or 15 Max
Saturated Output Power (total power)	dBm	10
Operating Wavelength Range(100G)	nm	1290~1330
Flatness	dB	≤ 1.5
Noise Figure	dB	≤ 7.5
Return Loss	dB	≤ 45
Input/Output Isolation	dB	≥ 30
Polarization Dependent Gain	dB	≤ 0.3
Working Mode		AGC/APC/ACC
Connector Type		LC/PC
Operating Temperature	℃	-5~+55
Storage Temperature	℃	-20~+70
Relative Humidity		5%~95%(non-condensing)

A: Amplifier Type	B: Standard Output Power	C: Max Gain	D: Input Power Range	E: Connector Type
SOA1: 1 optical link amplification SOA2: 2 optical link amplification X: Others	10: +10dBm Max X: Others	G13: 13dB Max G15: 15dB Max X: Others	A： -16 dBm ~ +5 dBm X: Others	LP: LC/PC X: Others
