Optical Isolator: Structure, Principles, Applications & Selection Guide

An optical isolator is a passive optical device that allows light to propagate in one direction while blocking it in the reverse direction. It plays a critical role in protecting sensitive optical components from back-reflections and feedback, ensuring stable system performance. Widely used in optical communications, fiber sensing, laser systems, and photonics, the optical isolator is essential for high-performance optical networks.

This article provides a comprehensive overview of optical isolators, covering their basic structure, key features, working principle, applications, types, selection criteria, usage considerations, and development history.

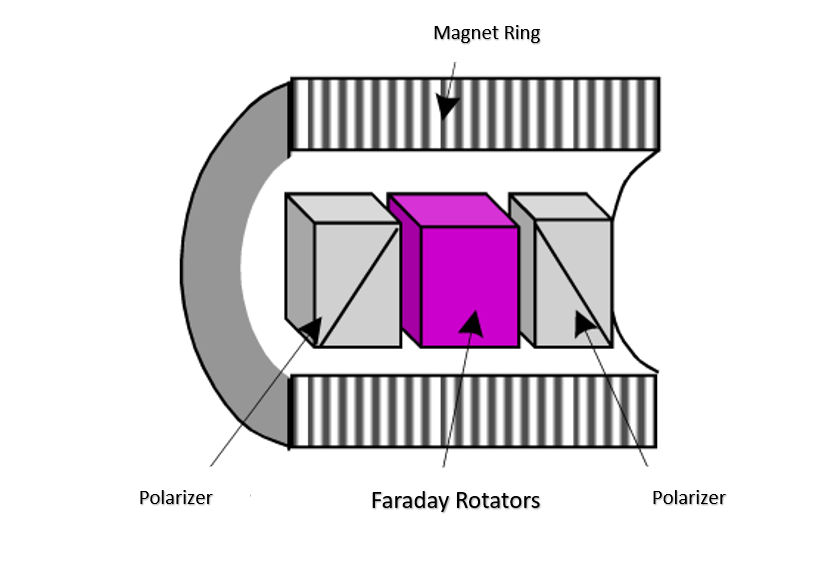

1. Basic Structure

A typical optical isolator consists of three core components:

• Polarization Beam Splitter (PBS)

• Polarizer

• Faraday Rotator (Magneto-Optic Element)



The polarization beam splitter is the key component, usually made of birefringent crystals (such as YVO₄ or calcite), which splits incoming light based on its polarization state. The polarizer controls the polarization direction of the transmitted light. The Faraday rotator, made of magneto-optic material (e.g., YIG – Yttrium Iron Garnet), rotates the polarization of light by 45° under the influence of a permanent magnetic field, enabling non-reciprocal transmission.

Note: The mention of "IRF7205TRPBF" in the original text appears to be a MOSFET component and is not relevant to optical isolator structure. It has been omitted for technical accuracy.

2. Key Features

• Unidirectional Transmission: Allows light to pass in the forward direction while blocking reverse-propagating light.

• Low Insertion Loss: Typically <0.5 dB, minimizing signal attenuation.

• High Isolation: Usually >30 dB, effectively suppressing back-reflections.

• Broad Operating Bandwidth: Available for various wavelength bands (e.g., 980 nm, 1310 nm, 1550 nm).

• Excellent Stability: Resistant to temperature variations and mechanical vibrations.

• Compact Design: Available in fiber-pigtailed, inline, or micro-optic packages.

3. Working Principle

The operation of an optical isolator is based on the Faraday effect — a magneto-optic phenomenon where the polarization plane of light rotates when passing through a material under a magnetic field. The rotation direction depends only on the magnetic field direction, not the light propagation direction (non-reciprocal).

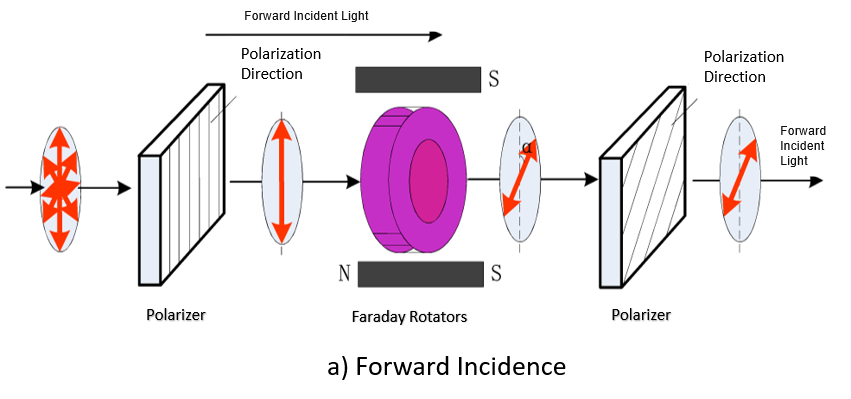

Forward path:

• Input light passes through the input polarizer.

• The Faraday rotator rotates the polarization by 45°.

• The polarization aligns with the output polarizer, allowing transmission.

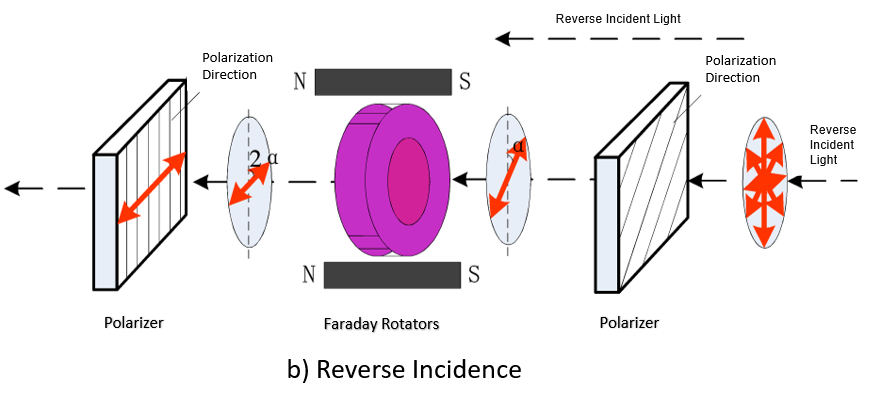

Reverse path:

• Reflected light enters the output polarizer.

• The Faraday rotator rotates its polarization by another 45° in the same direction (due to non-reciprocity).

• The resulting 90° misalignment blocks the light at the input polarizer.

This ensures one-way transmission and effective optical isolation.

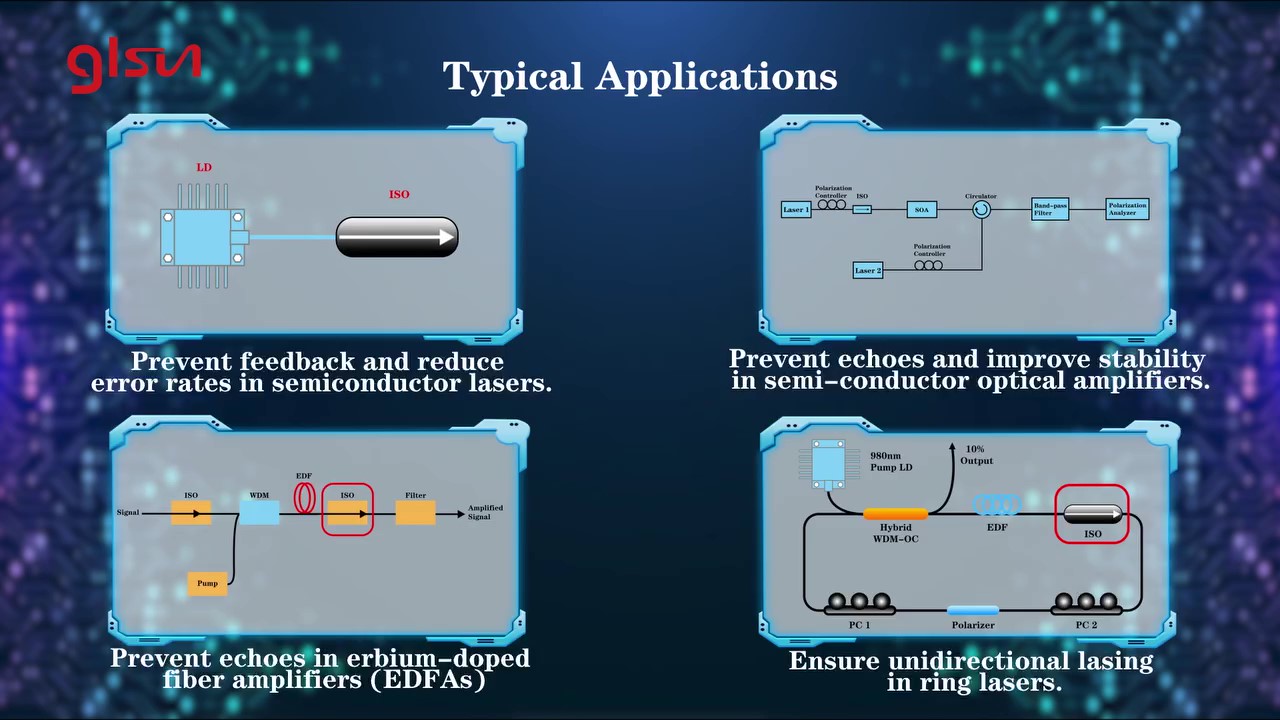

4. Applications

Optical isolators are widely used in:

• Fiber Optic Communication Systems: Protect lasers from back-reflections in transmitters.

• High-Power Laser Systems: Prevent feedback that could destabilize or damage laser diodes.

• Fiber Sensors: Improve signal-to-noise ratio by eliminating unwanted reflections.

• Optical Amplifiers (EDFA, Raman): Isolate amplifier stages and enhance stability.

• Quantum Optics & Research: Maintain coherence in precision optical setups.

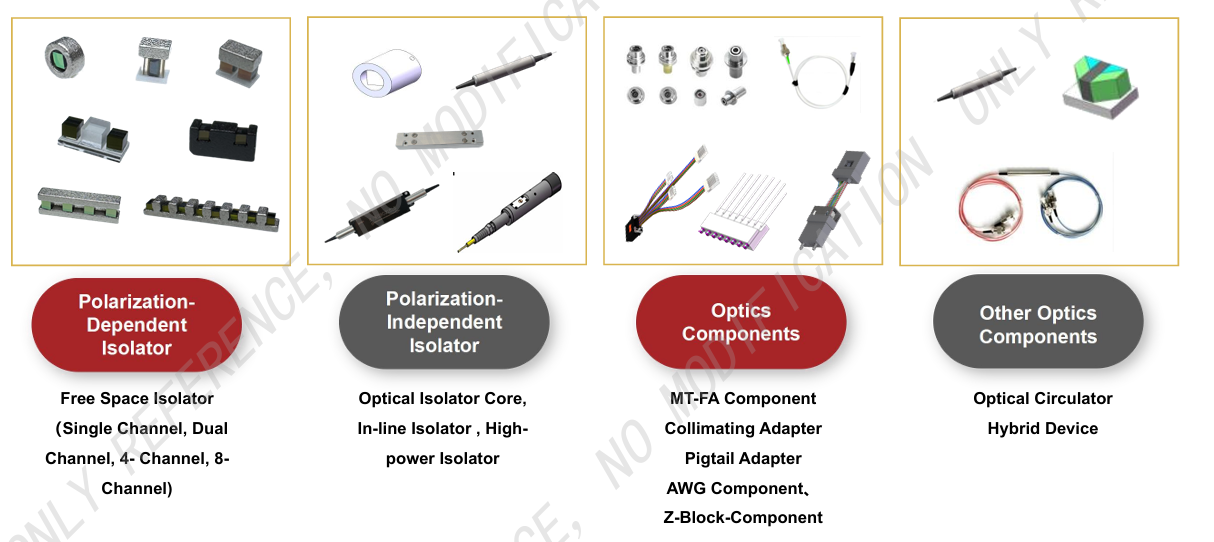

5. Types of Optical Isolators

6. Selection Criteria

When choosing an optical isolator, consider the following parameters:

• Operating Wavelength: Match to your system (e.g., 1310 nm, 1550 nm, C-band, L-band).

• Isolation Level: Higher isolation (>30 dB) is critical for sensitive applications.

• Insertion Loss: Lower is better (<0.5 dB ideal).

• Power Handling: Ensure compatibility with system power (especially for high-power lasers).

• Polarization Dependence: Choose polarization-insensitive type for standard fiber systems.

• Package Type: Inline, micro-module, or butterfly for integration needs.

7. Usage Considerations

To ensure optimal performance and longevity:

• Avoid Excessive Input Power: Stay within the specified power rating to prevent thermal damage.

• Minimize Back-Reflections: Use angled physical contact (APC) connectors and proper splicing.

• Handle with Care: Avoid mechanical shock or contamination of optical surfaces.

• Clean Interfaces Regularly: Use proper fiber optic cleaning tools to maintain low loss.

• Operate Within Temperature Range: Ensure ambient conditions match device specifications.

8. Development History

The concept of optical isolation dates back to the late 19th century with the use of polarizing filters to control light direction. However, these early devices suffered from high loss and limited functionality.

In the early 20th century, the discovery of magneto-optic effects led to the development of non-reciprocal optical devices. The Faraday isolator, based on the Faraday rotation effect, became the foundation of modern optical isolators.

With advances in material science and micro-optics, today’s isolators use high-performance magneto-optic crystals (e.g., TGG – Terbium Gallium Garnet) and compact designs. Recent developments include integrated photonic isolators using silicon photonics and non-linear optics, paving the way for on-chip optical isolation.

Looking ahead, future isolators aim for:

• Higher isolation (>50 dB)

• Ultra-low insertion loss (<0.2 dB)

• Broadband operation

• CMOS-compatible integration

Conclusion

Optical isolators are indispensable components in modern optical systems, providing critical protection against back-reflections and ensuring signal integrity. As optical networks evolve toward higher speeds and integration, the demand for high-performance, compact, and reliable isolators continues to grow.

At Guilin GLsun Science & Tech Group, we offer a wide range of optical isolators tailored to telecom, industrial, and research applications. Explore our full portfolio at www.glsun-int.com.
