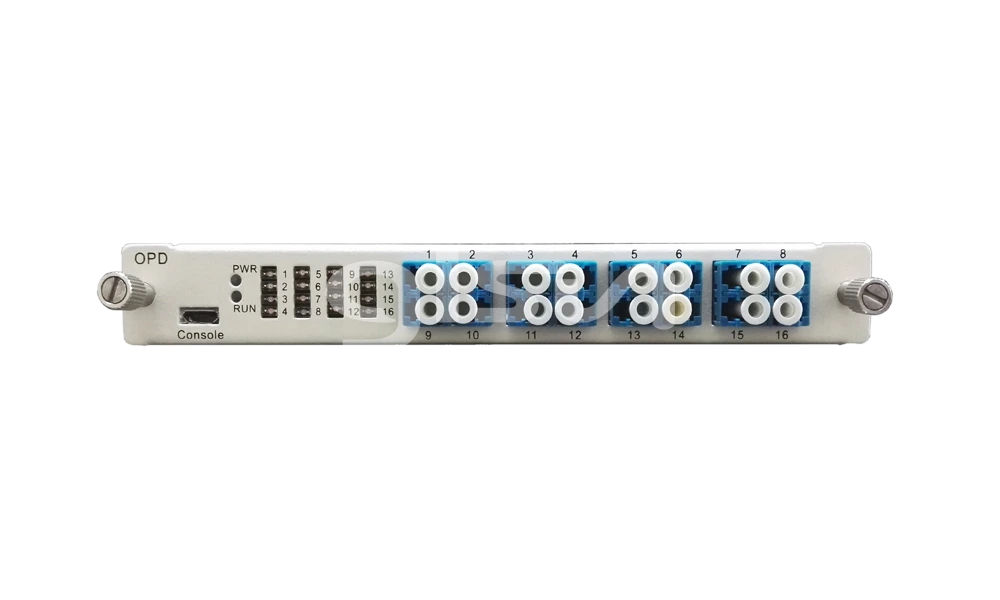

OPD Optical Power Detection Equipment

OTS3000-OPD Optical Power Detection is a kind of high performance, multi-channel optical power detector, which is applied to the loss measurement of the optical fiber, cable, and construction and protection for the optical communication system engineering. Since its high measurement accuracy,high stability and high performance, OPD becomes an ideal choice of optical real-time monitoring system.

Parrameters	Unit	OTS3000-OPD
Dimension	mm	160×200×21（WxDxH)
Maximal Power Consumption	W	2
Channel NO.		N=16
Test Wavelength	nm	1310/1550
Insertion Loss	dB	= 0.7
Power Range	dBm	-50 ～＋23
Accuracy		± 5%
Distinguishability	dB	0.01
Fiber Type		SM（9/125um）
Connector type		LC/PC
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-20 ~ +70
Relative Humidity		5% ~ 95% (non-condensing)

A: Channel	B: Test Wavelength	C: Connector Type
2：2 Channels 4：4 Channels 8：8 Channels 16：16 Channels X: Others	1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X: Others	LP: LC/PC X: Others

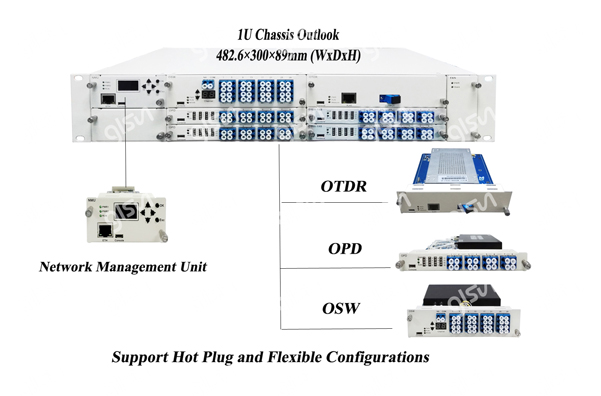

Modularized design, Compact size, Support hot Plug.
Support 1310nm,1550nm dual window optical power detection.
High accuracy, High stability, Easy to use.

◆Optical fiber, cable, optical passive device loss measurement.

◆Cable Monitoring and Maintaining system.
◆Multi-channel optical power real-time detection and monitoring.
