LSU Light Source Unit

OTS3000-LSU is a kind of function card in optical communication integrated platform. This light source unit has the features of stable light source, high measurement accuracy, high reliability and good cost-performance ratio. LSU adopts APC technology to ensure the high stability of the output power. It is common equipment of R&D, manufacture and engineering in optical communication, optical transmission, and optical sensor system. LSU becomes an ideal device for measuring the big range attenuation variation, high stable power and wavelength.

Parrameters	Unit	OTS3000-LSU
Dimension	mm	160×200×21（WxDxH)
Maximal Power Consumption	W	3
Channel		N=16
Operating Wavelength	nm	1310/1550
Fiber Type		SM 9/125
Output Power	dBm	-3 ~ 0
Short Term Output Stability		±0.05dB /15min
Long Term Output Stability		±0.1dB / 8h(20℃)
Optical Output Mode		Continuous output
Connector type		LC/PC
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-20 ~ +70
Relative Humidity		5% ~ 95% (non-condensing)

A: Channel	B: Laser Type	C: Light Source Wavelength	D: Output Power	E: Connector Type
2：2 Channels 4：4 Channels 8：8 Channels 16: 16 Channels X: Others	DFB: DFB Laser X: Others	1310: 1310nm 1550: 1550nm X: Others	N3: -3 ~ 0 dBm X: Others	LP: LC/PC X: Others

Modularized design, Compact size, Support hot Plug.
Stable output wavelength.
High accuracy, High stability, Easy to use.

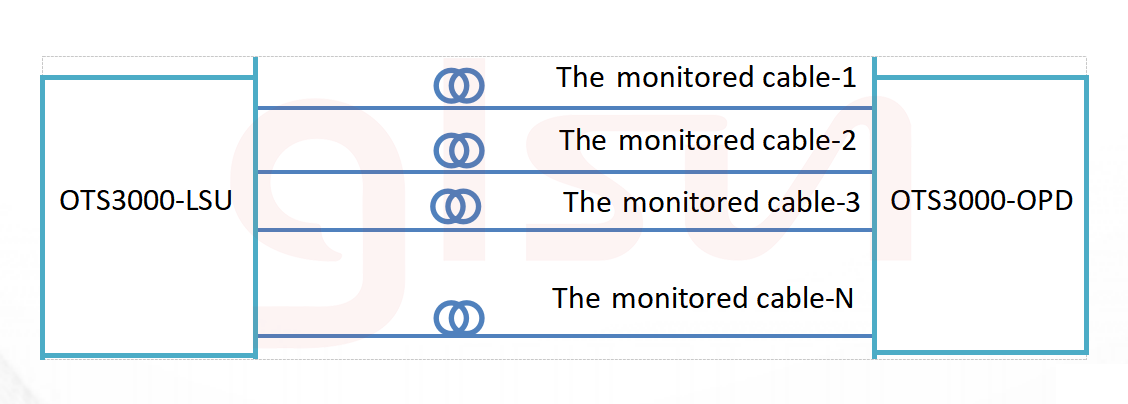

◆Cable Monitoring and Maintaining System
