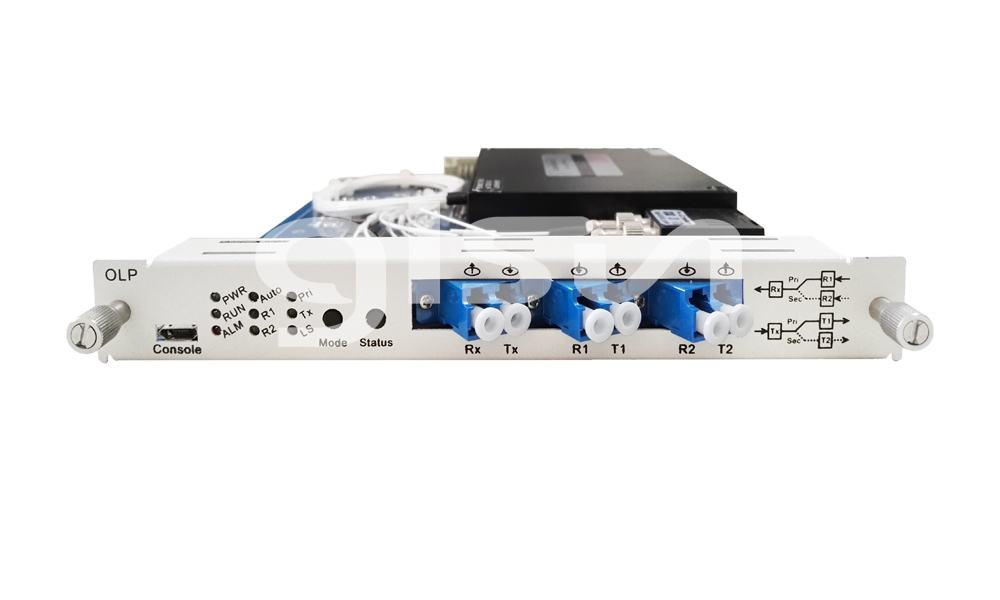

OLP Optical Line Protection Equipment

OTS3000-OLP Optical Line Protection System is an automatic monitoring and protection system independent from telecommunication transmission system and completely based on physical link of fiber. OLP protection card has features such as independent transparent transmission, high reliability, high stability, fast fault protection, etc.

Parrameters	Unit	OTS3000-OLP		OTS3000-OLP BIDI
Dimension	mm	160×200×21（W×D×H)
Max Power Consumption	W	1
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Protecting Ways		1:1	1+1	1:1	1+1
Insertion Loss	dB	TX<1.2 RX<1.2	TX<3.8 RX<1.2	Tx ≤ 1.2 Rx ≤ 1.2	Tx ≤ 3.8 Rx ≤1.2
Switching Time	ms	≤25	≤15	≤35	≤20
Crosstalk	dB	SM ≥ 50		SM ≥ 55
Return Loss	dB	SM ≥ 45
PDL	dB	≤ 0.20
WDL	dB	≤ 0.30
Power Monitoring Range	dBm	-50 to 23
Operating Temperature	℃	-5~+55
Storage Temperature	℃	-20~+70
Relative Humidity		5%~95%(non-condensing)

A: Model	B: Protecting Ways	C: Fiber Type	D: Monitoring Wavelength	E:Connector Type
OLP: two-fiber bidirectional OLP-BIDI: single fiber bidirectional X: Others	1:1: transmitter and receiver selectively 1+1:transmitter simultaneously and receiver selectively X: Others	SM：SM 9/125 M5：MM 50/125 M6：MM 62.5/125 X: Others	850：850nm 1310：1310nm 1550：1550nm 1310/1550：1310nm/1550nm X: Others	LP: LC/PC X: Others

Modularized design, Compact size, Support hot Plug.
Wide wavelength range, Low insertion loss, Low crosstalk, Fast switching speed.
Transparent transmission, High Stability, High Reliability, Support path latching while there is no optical signal.

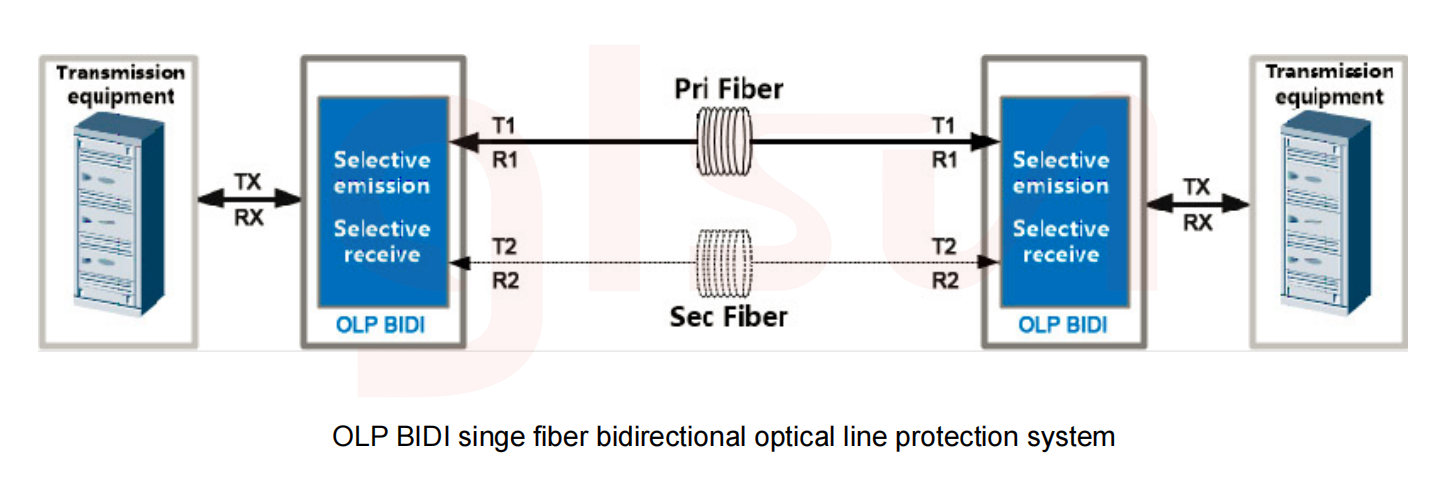

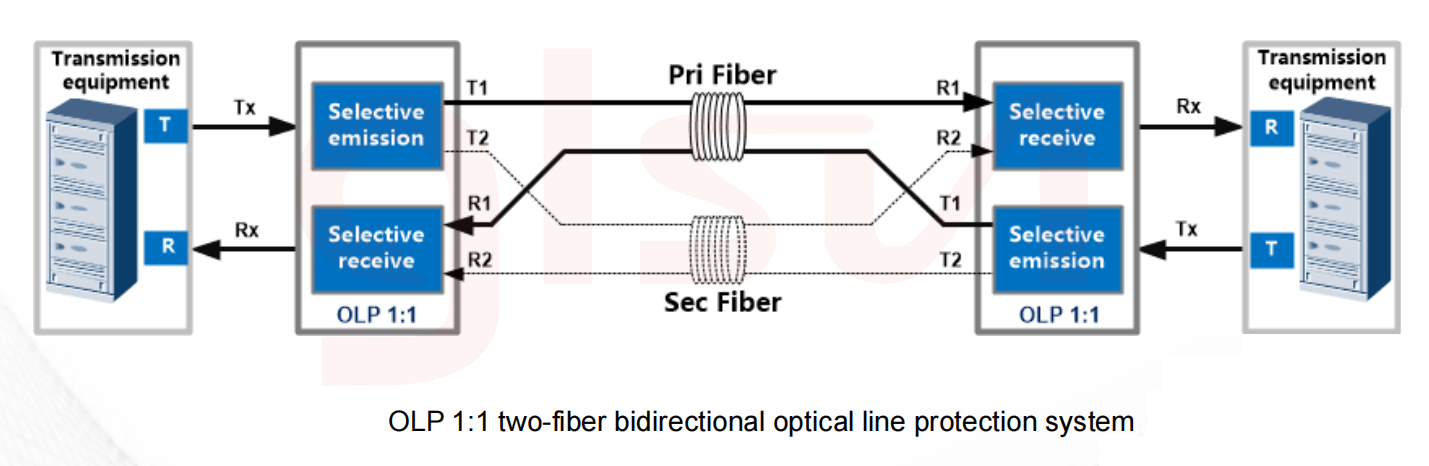

Support the protecting ways: OLP 1: 1 mode, OLP 1+1 mode, two-fiber bidirectional, single fiber bidirectional.

◆Fiber optic line protection

◆Network route protection
