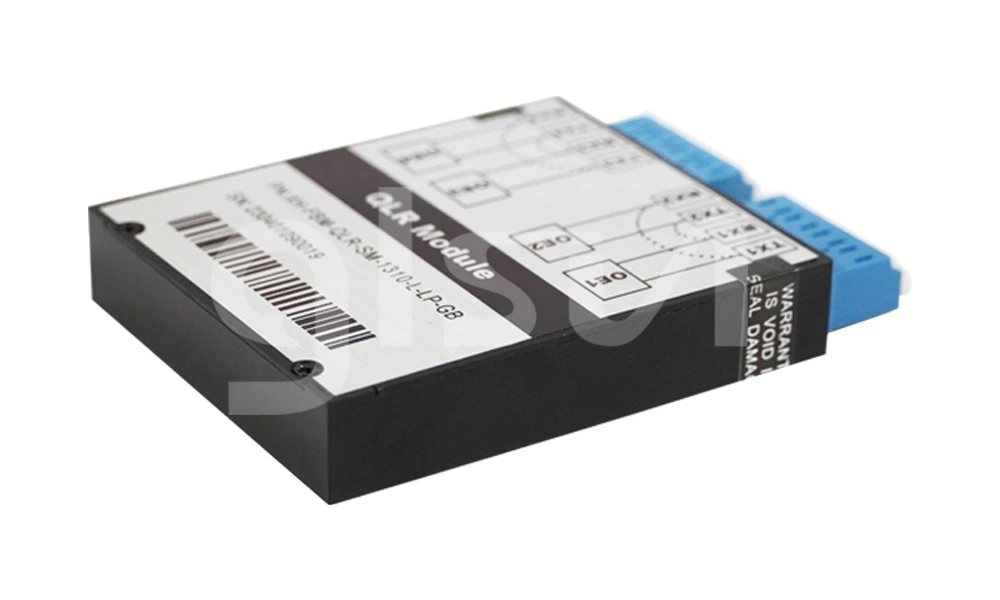

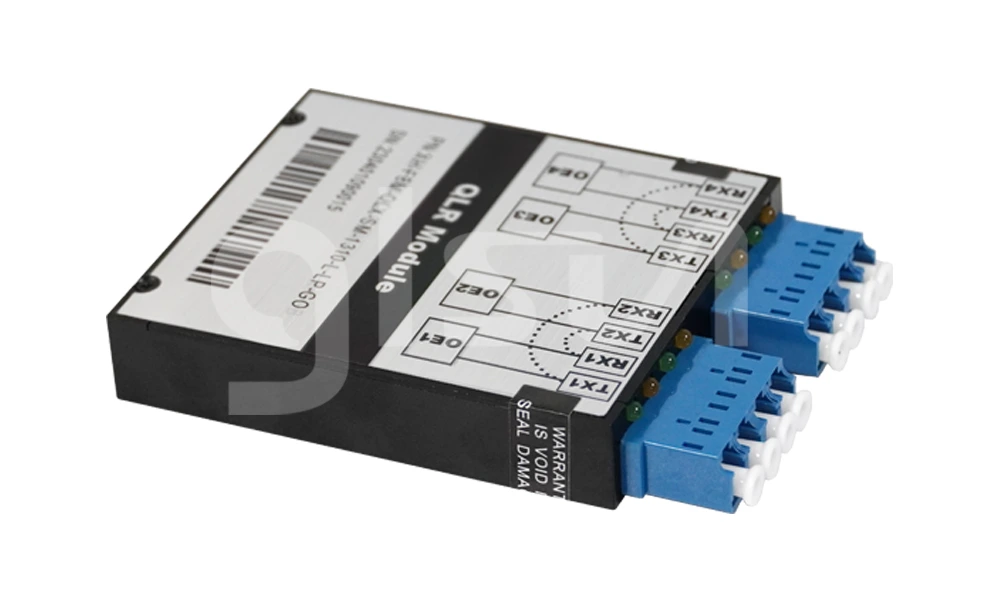

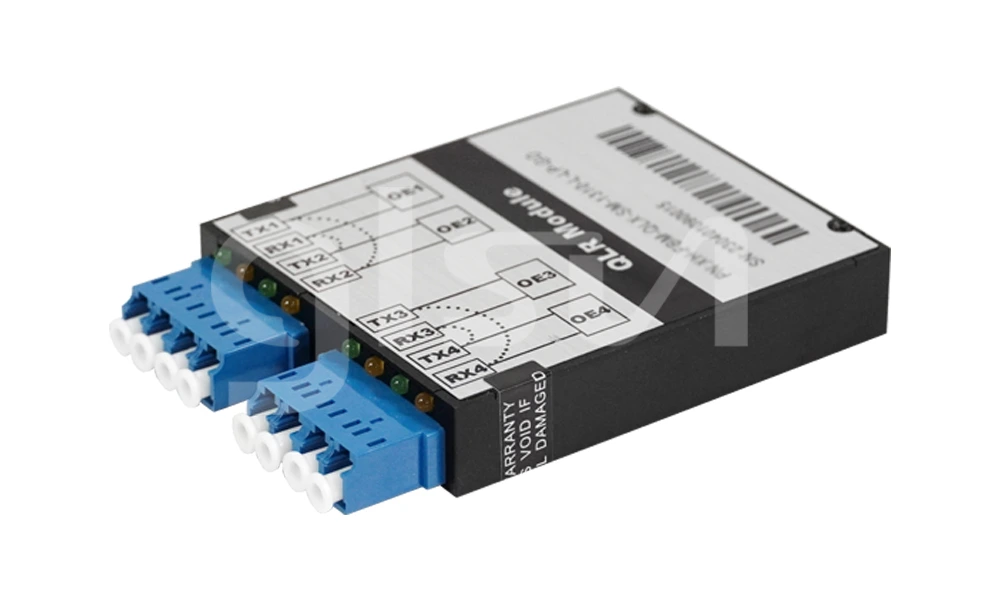

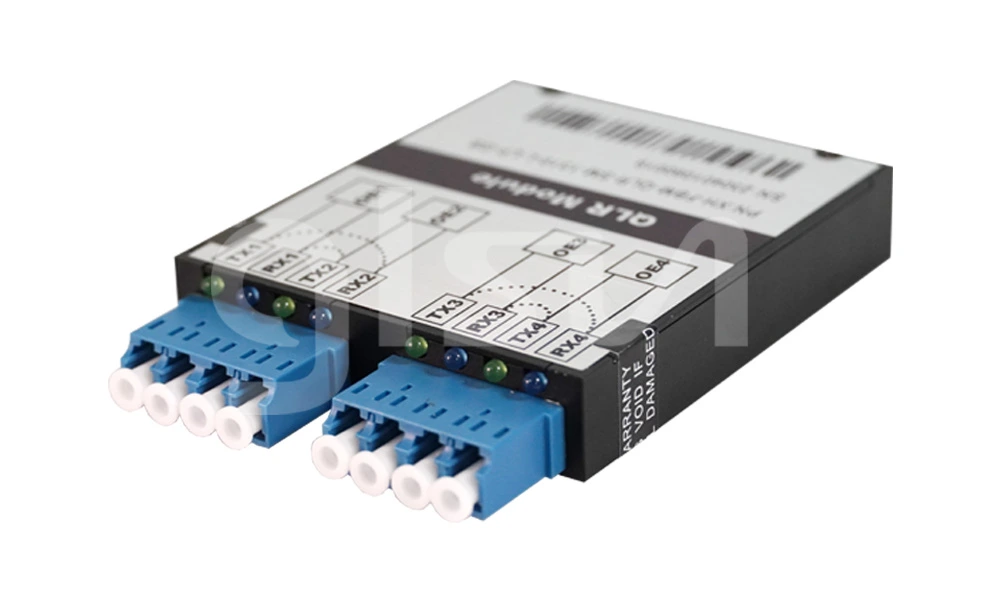

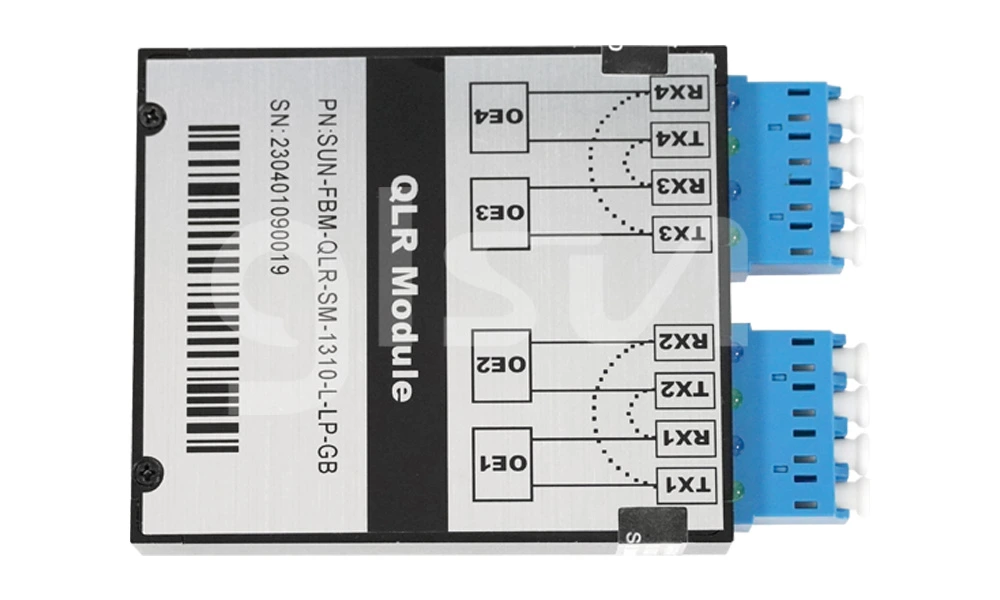

Quad Port 10G LR Fiber Bypass Module

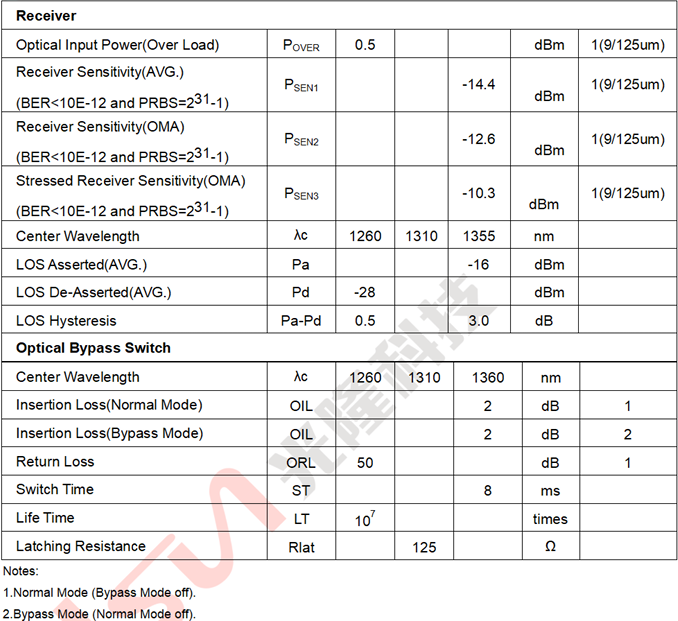

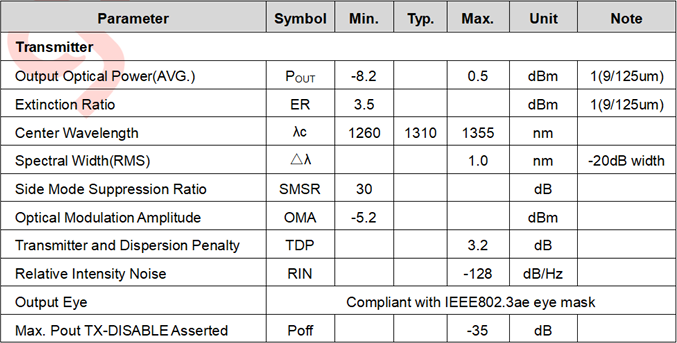

The QLR fiber bypass module is design expressly for Intrusion Prevention System (IPS) provides complete visibility to network traffic, it also introduces a point of failure should the IPS lose power, cable fail or application freeze. The module can support 10.3Gbit/s in full duplex mode per port of data transfer rate and Single-mode fiber operations. The QLR fiber bypass modules designed to be compliant digital diagnostic monitoring function: Temperature, VCC, TX optical power, TX laser bias current, and RX received optical power. The post-amplifier of the QLR fiber bypass module also includes a Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold.
