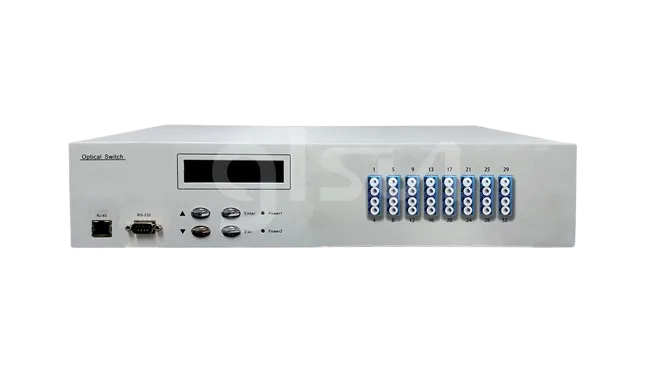

MEMS MxN Rack Optical Switch

GLSUN MEMS MxN rackmout type optical switch features low insertion loss, short switch time and high reliability. Moreover, it has LCD and panel buttons for easy operations, and RJ45 port for external controls. MEMS MxN rack optical switch supports various network protocols, including SNMP, TELNET etc , default TCP/IP 4001 port.

Parrameters	Unit	Specifications
Wavelength Range	nm	1260~1650
Test Wavelength	nm	1310/1550
Insertion Loss	dB	8X3	TYP: ≤1.6 MAX: ≤2.0
		8X4	TYP: ≤1.6 MAX: ≤2.0
		8X8	TYP: ≤1.6 MAX: ≤2.0
		12X12	TYP: ≤2.8 MAX: ≤3.0
		32X32	TYP: ≤3.6 MAX: ≤4.0
Repeatability	dB	≤±0.05
Return Loss	dB	≥45
Crosstalk	dB	≥50
WDL	dB	≤0.3
PDL	dB	≤0.2
Switching Time	ms	≤50
Durability	Cycles	≥10⁹
Connector Type		FC/APC or other
Monitoring Port	mW	RJ45
Power Supply	V	AC 100V~240V or DC 36~72V
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
Power Consumption	W	≤50
Relative Humidity	%	5~95

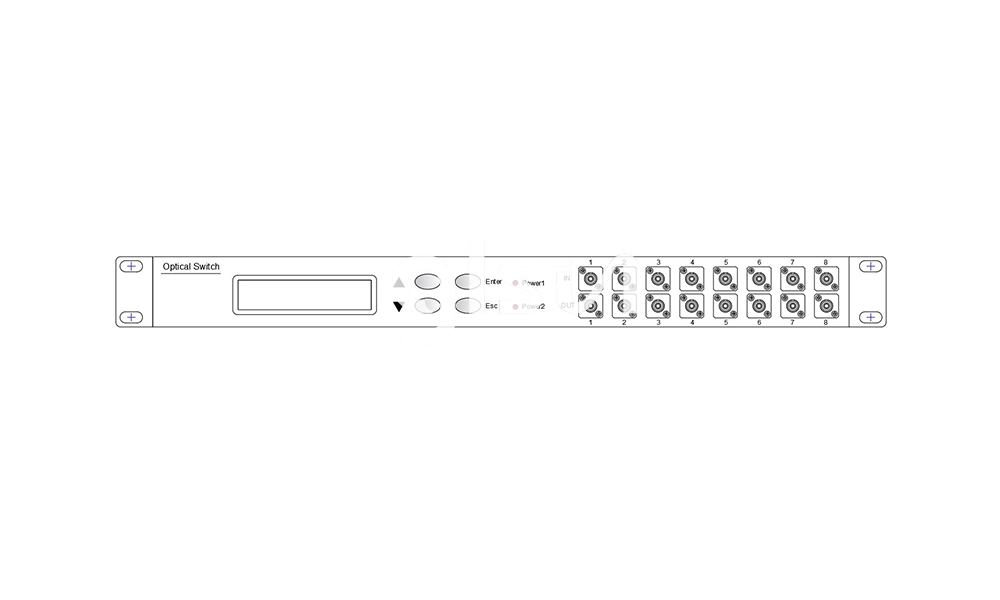

Chassis	mm	1U	482.6(±3)x303(±2)x44(±2)（8X3/8X4/8X8）

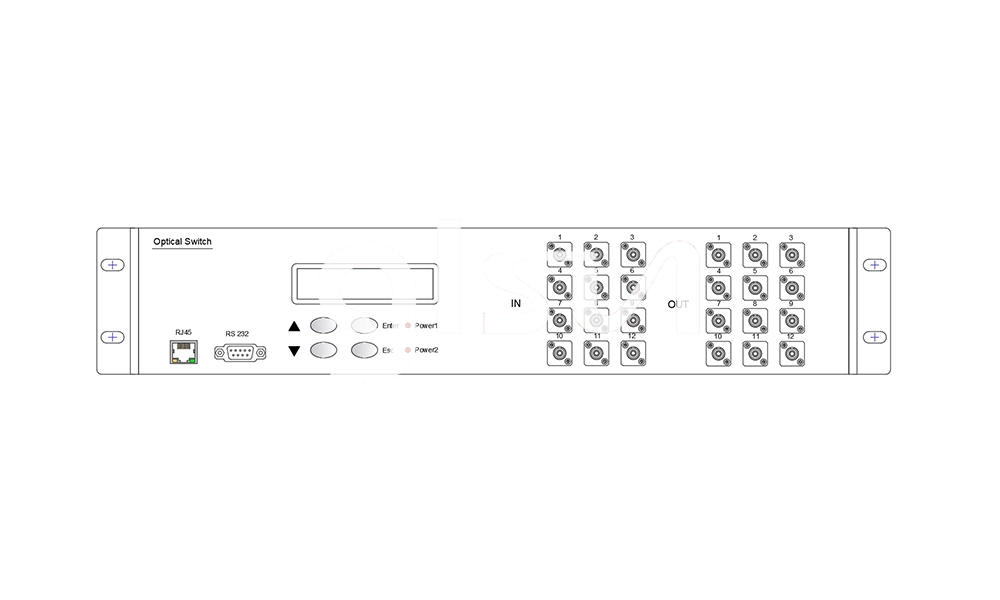

		2U	482.6(±3)x303(±2)x89(±2)（12X12）

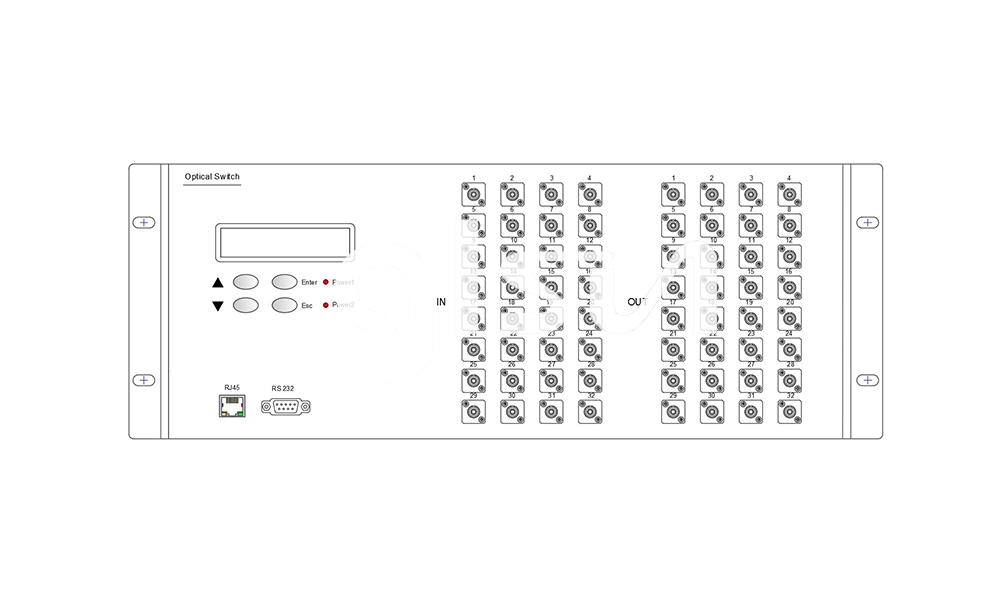

		4U	482.6(±3)x303(±2)x177(±2)（32X32）
Note: 1. Special design can be made on request. 2. WDL is specified in a ±20 nm of 1550nm at 23°C.

M×N: Number

A: Fiber Type

B: Test Wavelength

C: Connector

D: Power Supply

E:Chassis Dimension

M≤32

N≤32

SM：SM 9/125

1310: 1310nm

1550: 1550nm

13/15：1310/1550nm

FA: FC/APC

X: Others

AC:100~240V/50~60Hz

DC: 36~72V

AC/AC: Double-AC

AC/DC: AC and DC

1U：482.6×303×44mm

2U：482.6×303×89mm

4U：482.6×303×177mm

X: Others

DWDM networks
Auto switch of LAN multi-light source/detector and multi-sensing dynamic monitoring system
Optical channels monitoring or control
Tests of optical fiber, optical components, network and field optical cables
Test system in optical fiber and optical components
Network Tests of optical fiber transmission

◆Low Insertion Loss, Fast Switching Speed,High Stability

◆Thicken Sheet Metal Chassis, Rugged and Durable

◆Switch Channels by Programmed Command

◆Lock Panel Button via Programmed Command
